Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.30 Backrest – removal and installation
Page 9 of 13

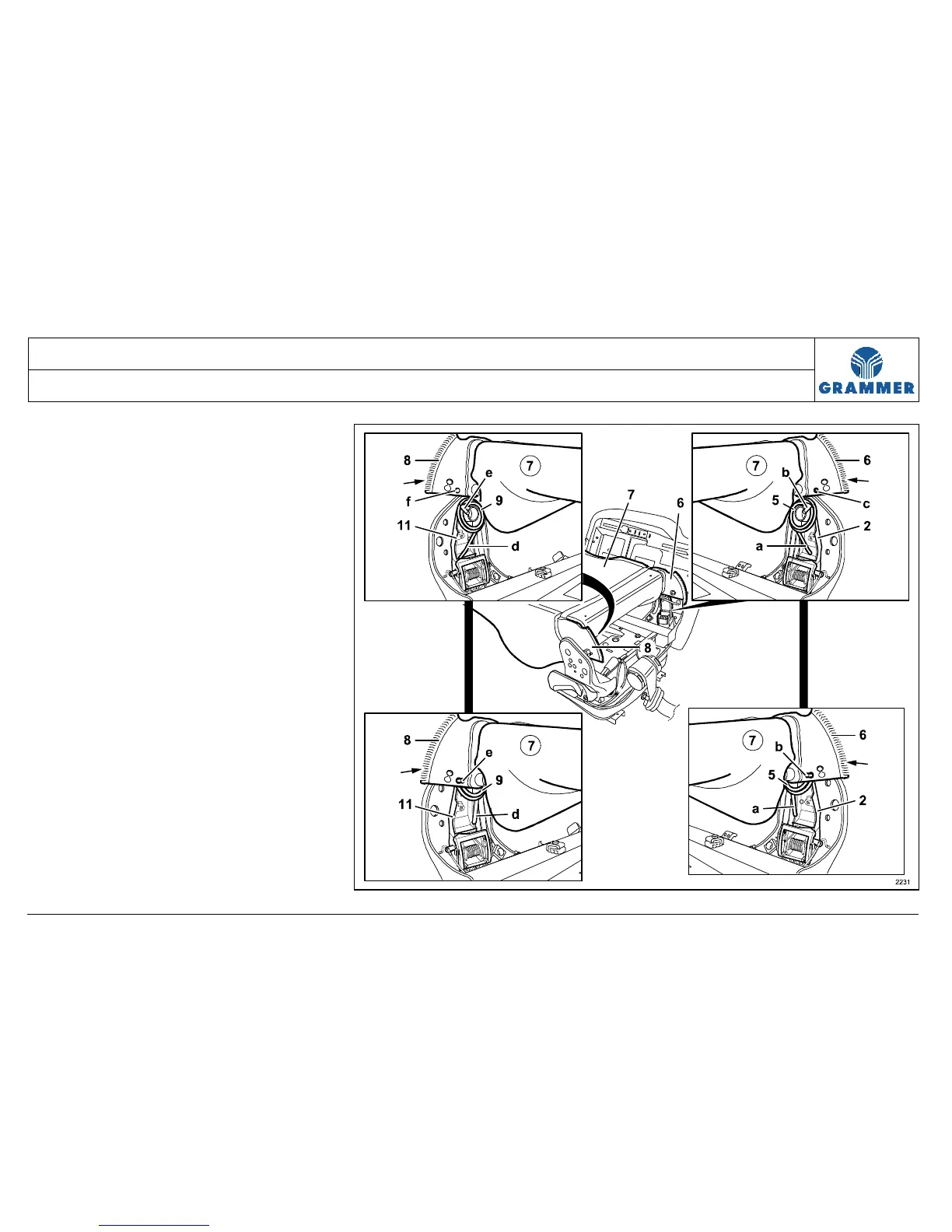

2.2 Hang in the angular leg (b) of the
torsion spring (5) in the drill hole (c)
on the leaf (6) of the backrest (7).
2.3 Push the leaf (6) with the engaged
torsion spring (5) down in front the
bearing support (2) and temporarily
fasten it with a micro-encapsulated
hexagon bolt (1).
3 Installation on the left bearing
support (11):
3.1 Lift the backrest (7) at the left and
put the torsion spring (9) to the left
bearing support (11):
• The straight leg (d) points
downwards.
• The angular leg (e) points towards
the leaf (8) of the backrest (7).
F
F
F
F
