3.30 Backrest – removal and installation
Page 8 of 13

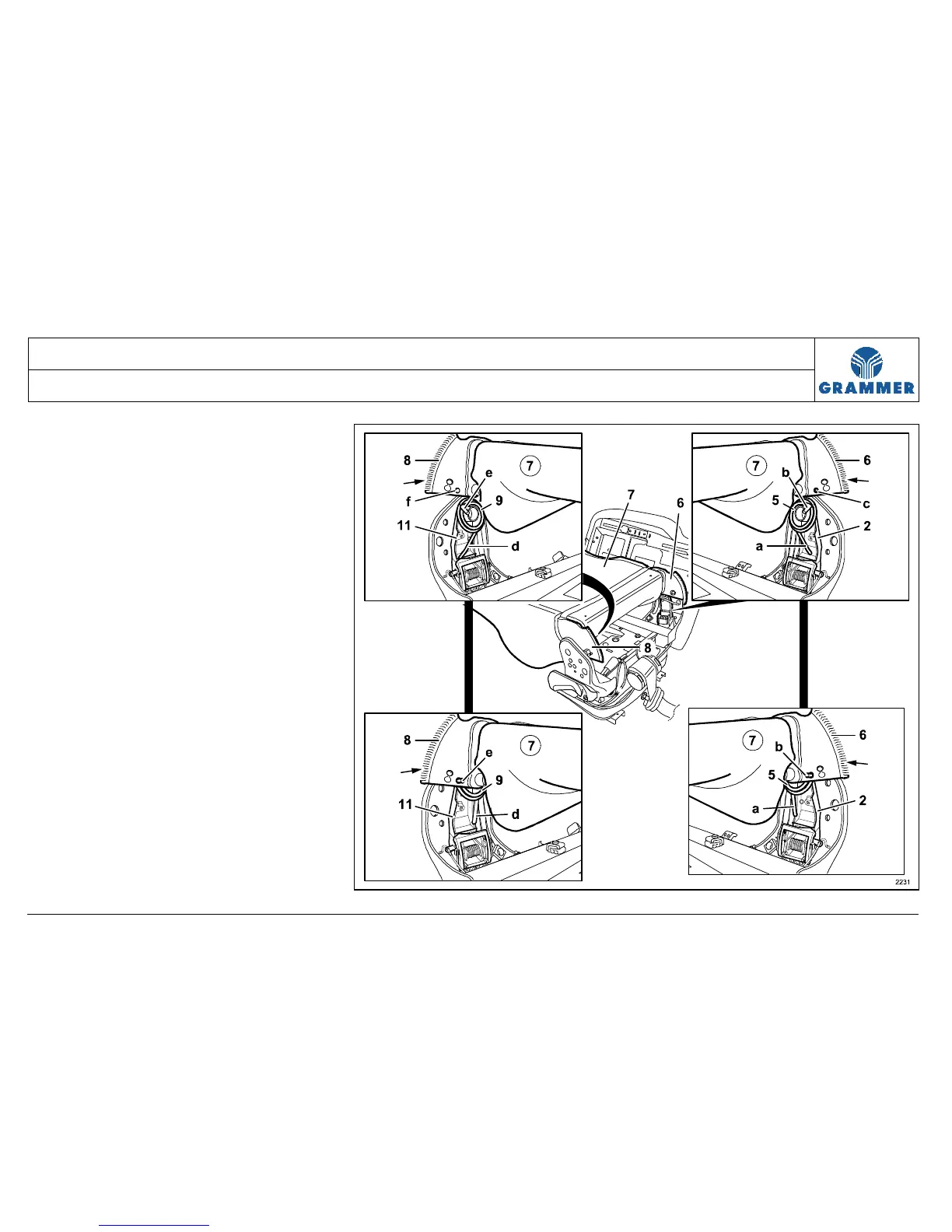

Installation
1 Put the backrest (7) in forward inclined
horizontal position on the bearing
supports (2, 11).
Installation note:
Apply acid-free multi-purpose lubricant
to the teeth (F) of the leaf (6, 8).
Note:
Perform installation consecutively first on
the right (2) and then on the left bearing
support (11).
2 Installation on the right bearing
support (2):
2.1 Lift the backrest (7) and put the
torsion spring (5) to the right bearing
support (2).
• The straight leg (a) points
downwards.
• The angular leg (b) points towards
the leaf (6) of the backrest (7).
