3.30 Backrest – removal and installation
Page 7 of 13
REMOVAL INSTALLATION TABLE OF CONTENTS

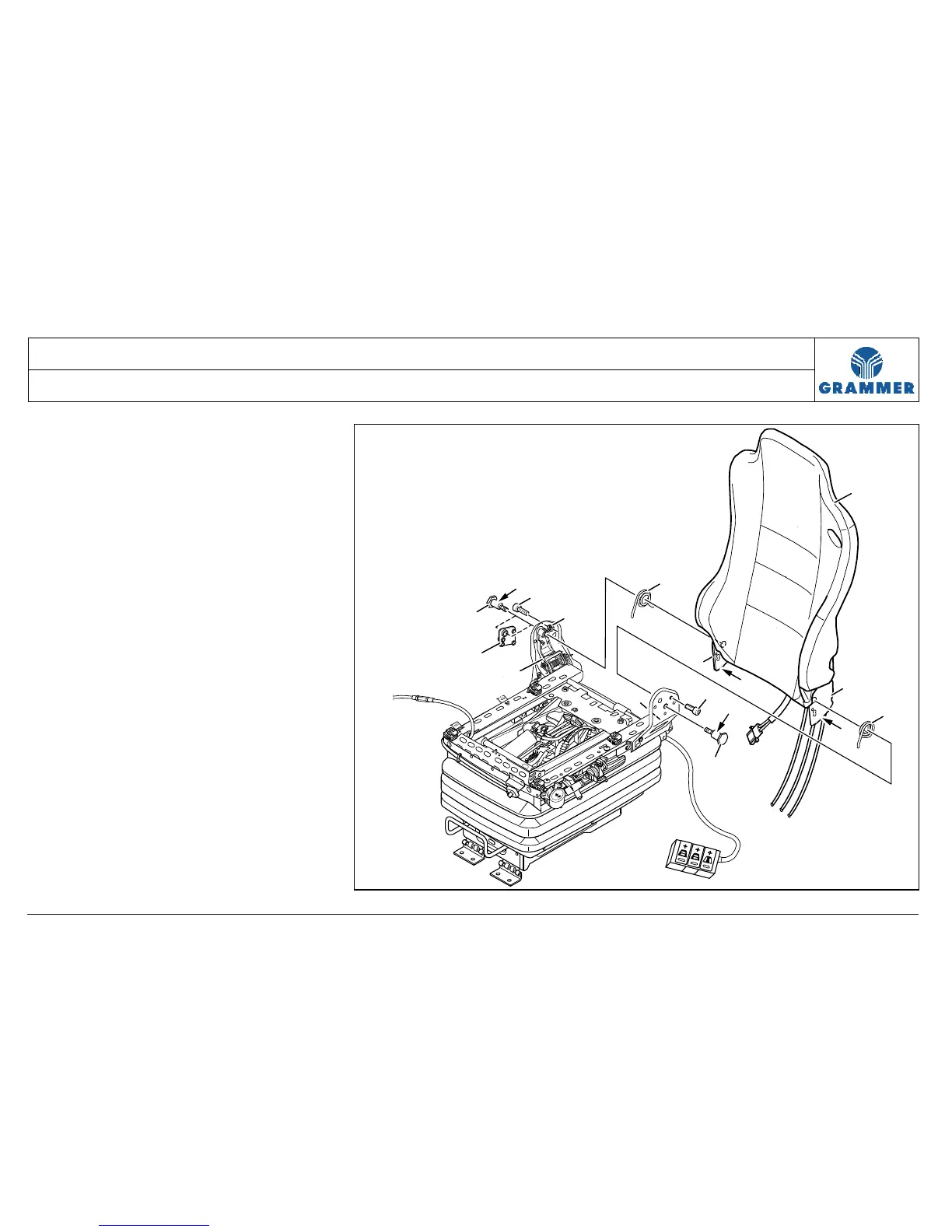

13 Unscrew two hexagon bolts (1, 10)
and remove the backrest (7) with the
torsion springs (5, 9) at the bearing
supports (2, 11).
Notes:
• Hexagon bolts (1, 10) have
different widths across flats
depending on the seat’s special
equipment (e.g. console for electro-
pneumatic gearshift).
• If a console for electro-pneumatic
gearshift exists, the support for the
EPS console (12) must also be
removed or installed.
