Grammer MSG 90.6PG - Page 271

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c

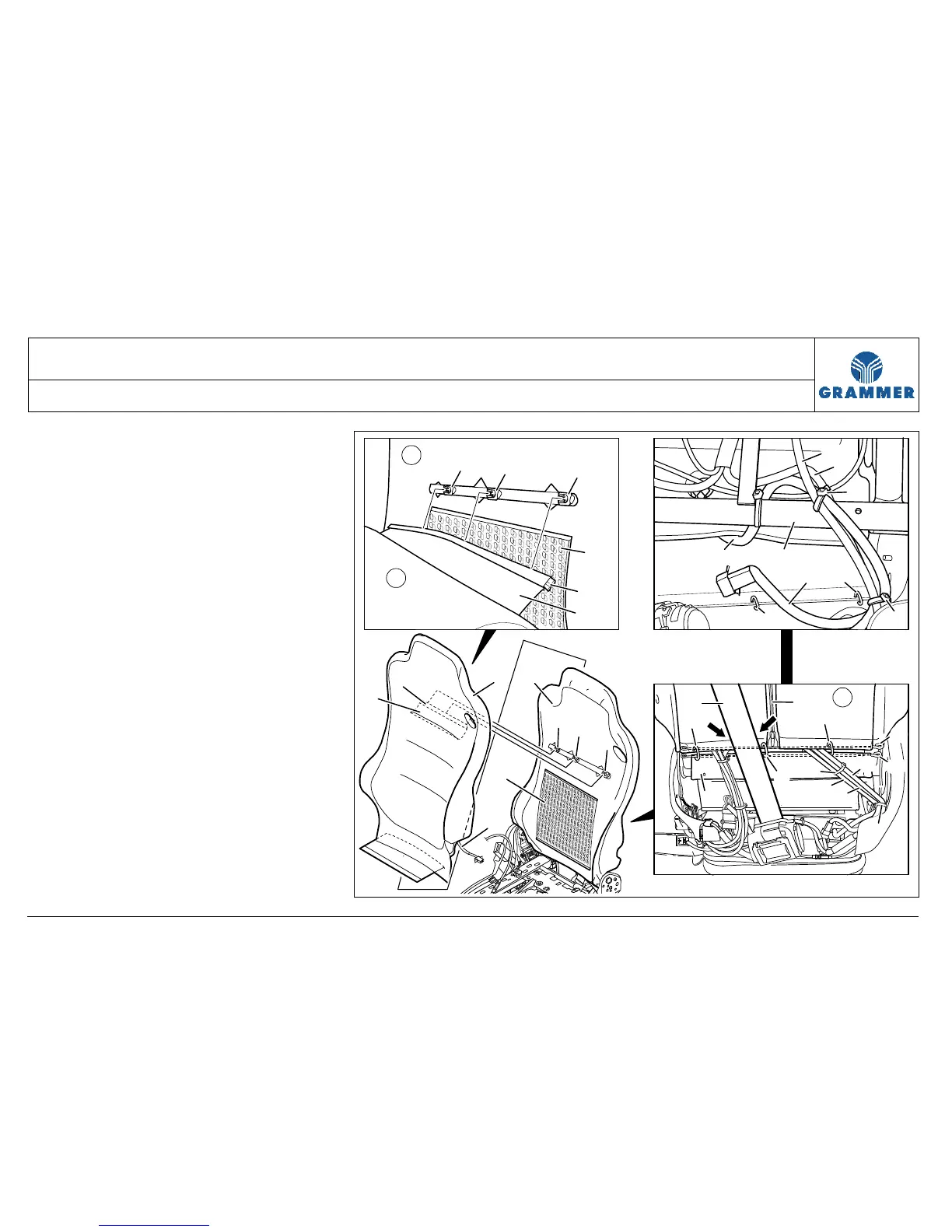

3.31.2 Backrest cover – removal and installation
(seat with climate control system)
Page 2 of 6
REMOVAL / INSTALLATION TABLE OF CONTENTS
Note:
No claims for warranty can be accepted
if you install the backrest cushion
covers of other manufacturers than
GRAMMER AG.
1 Lift off the seat cushion in position for
repair (Chapter 3.1).
2 Remove the left covering in position
for repair (Chapter 3.4).
3 Remove the covering at the back (see
Chapter 3.5).
4 Seat with armrests:
Remove the armrests (Chapter 3.24).
