Grammer MSG 90.6PG - Page 272

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.31.2 Backrest cover – removal and installation
(seat with climate control system)
Page 3 of 6
REMOVAL / INSTALLATION TABLE OF CONTENTS

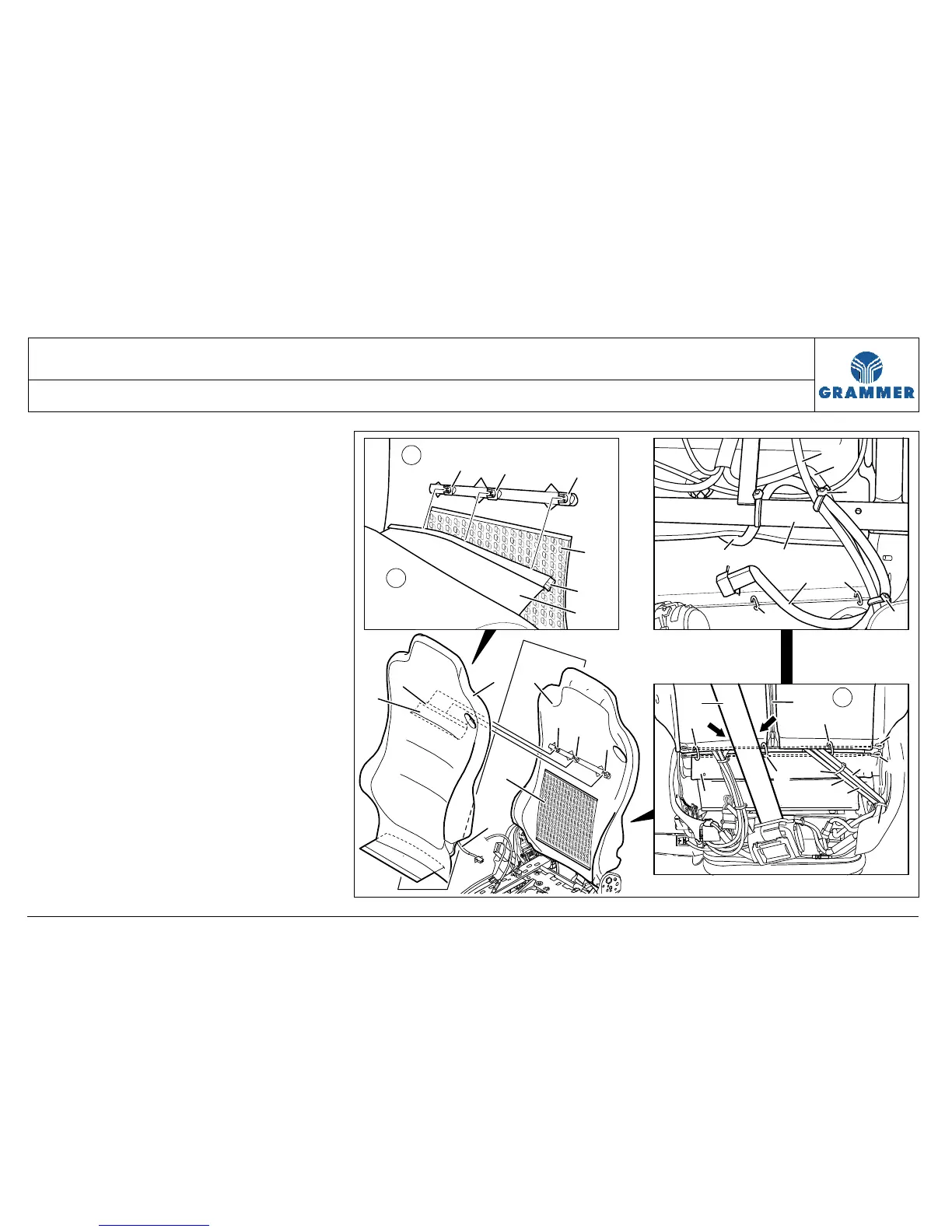

5 Remove the backrest cover and the
safety belt (see Chapter 3.26).
Note:
Remove the safety belt only at the
backrest. Do not remove the belt roller
and the belt buckle.
6 Pull off the lever for backrest
adjustment at the bolt (see
Chapter 3.13).
Note:
Left and right Bowden pull wires need
not be taken off at the lever for
backrest adjustment.
7 Remove the microphone cable at the
microphone support and pull out
through the backrest cover towards
the inside (see Chapter 3.54).
