Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c

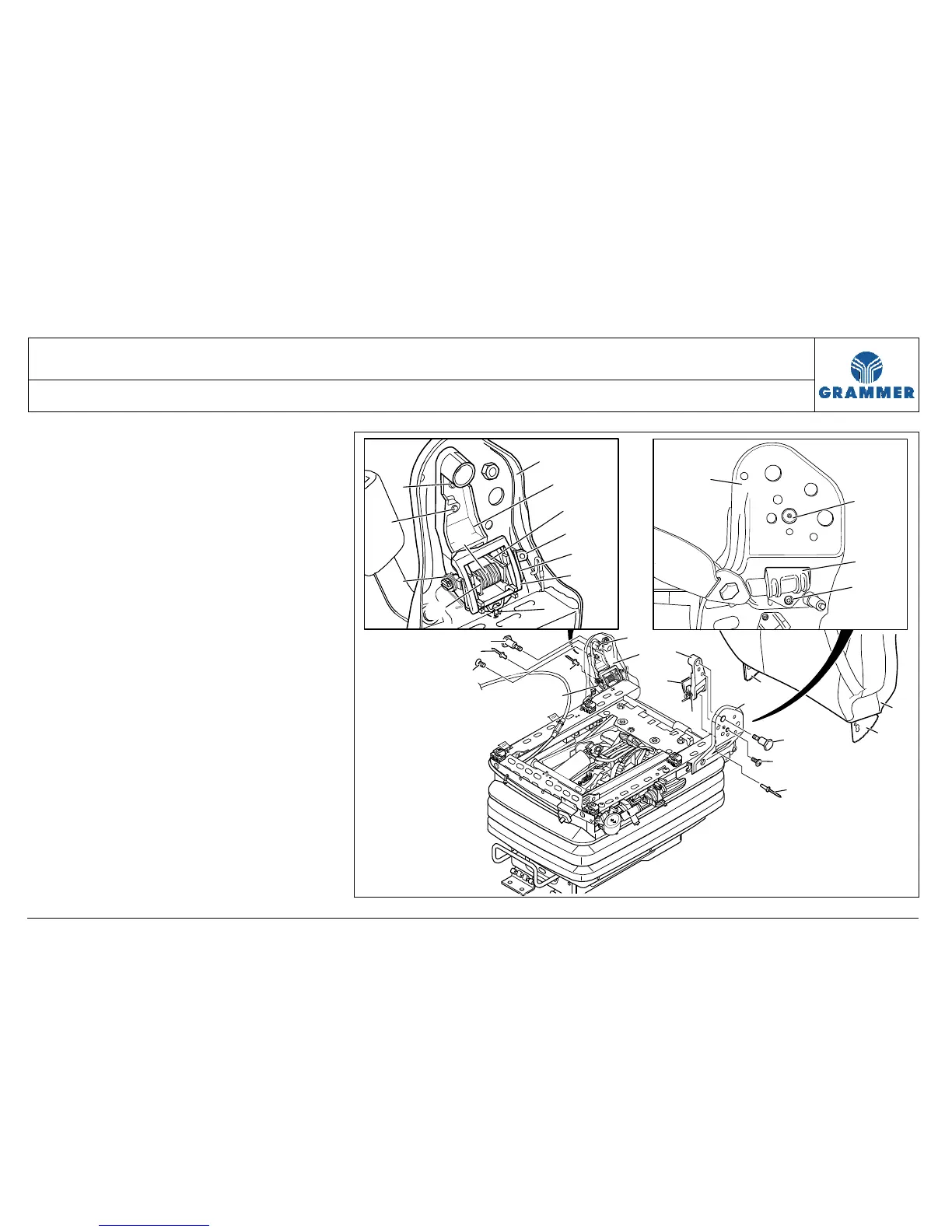

3.32 Bearing support with backrest locking mechanism and hook-in
function – removal and installation
Page 1 of 14
REMOVAL INSTALLATION TABLE OF CONTENTS
(1) Bearing support (right)
(2) Bearing support (left)
(3) Seat frame (right)
(4) Rounded head screw .............. 6 Nm
(5) Blind rivet
(6) Hexagon bolt
(7) Retaining spring (right)
(8) Retaining spring (left)
(9) Seat frame (left)
(10) Backrest
(11) Rounded head screw .............. 6 Nm
(12) Blind rivet
(13) Lock ................................. to grease
(14) Spacer ............................. to grease
(15) Catch element ................. to grease
(16) Torsion spring
5
11
6
10
19
19
9
12
2
18
8
3
1
4
5
14
2
12
11
9
6
5
4
5
7
7
5
15
16
17
1
3
14
13
