Grammer MSG 90.6PG - Page 280

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.32 Bearing support with backrest locking mechanism and hook-in
function – removal and installation
Page 5 of 14
REMOVAL INSTALLATION TABLE OF CONTENTS

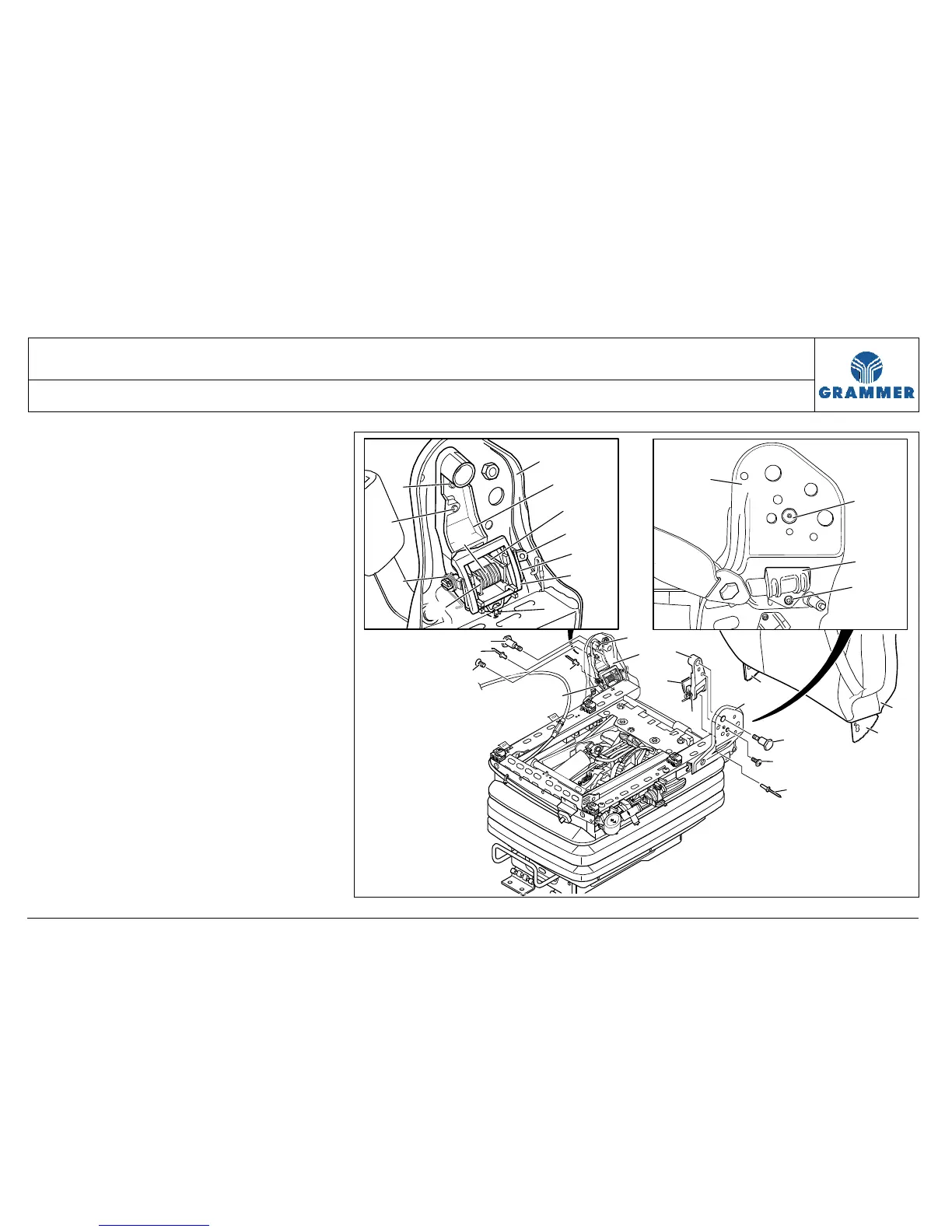

6 Pull off the lever for backrest
adjustment at the stud (see
Chapter 3.13).
Note:
The left and right Bowden pull wires
for backrest adjustment do not have to
be detached at the lever for backrest
adjustment.
7 Detach the Bowden pull wires for
backrest adjustment at the left and
right catch elements (see
Chapter 3.13).
