3.32 Bearing support with backrest locking mechanism and hook-in
function – removal and installation
Page 7 of 14
REMOVAL INSTALLATION TABLE OF CONTENTS
Installation
Note:
Reuse or convert parts which are not
included in the scope of delivery of the
backrest locking mechanism.
1 Assembly of the right bearing
support (1):

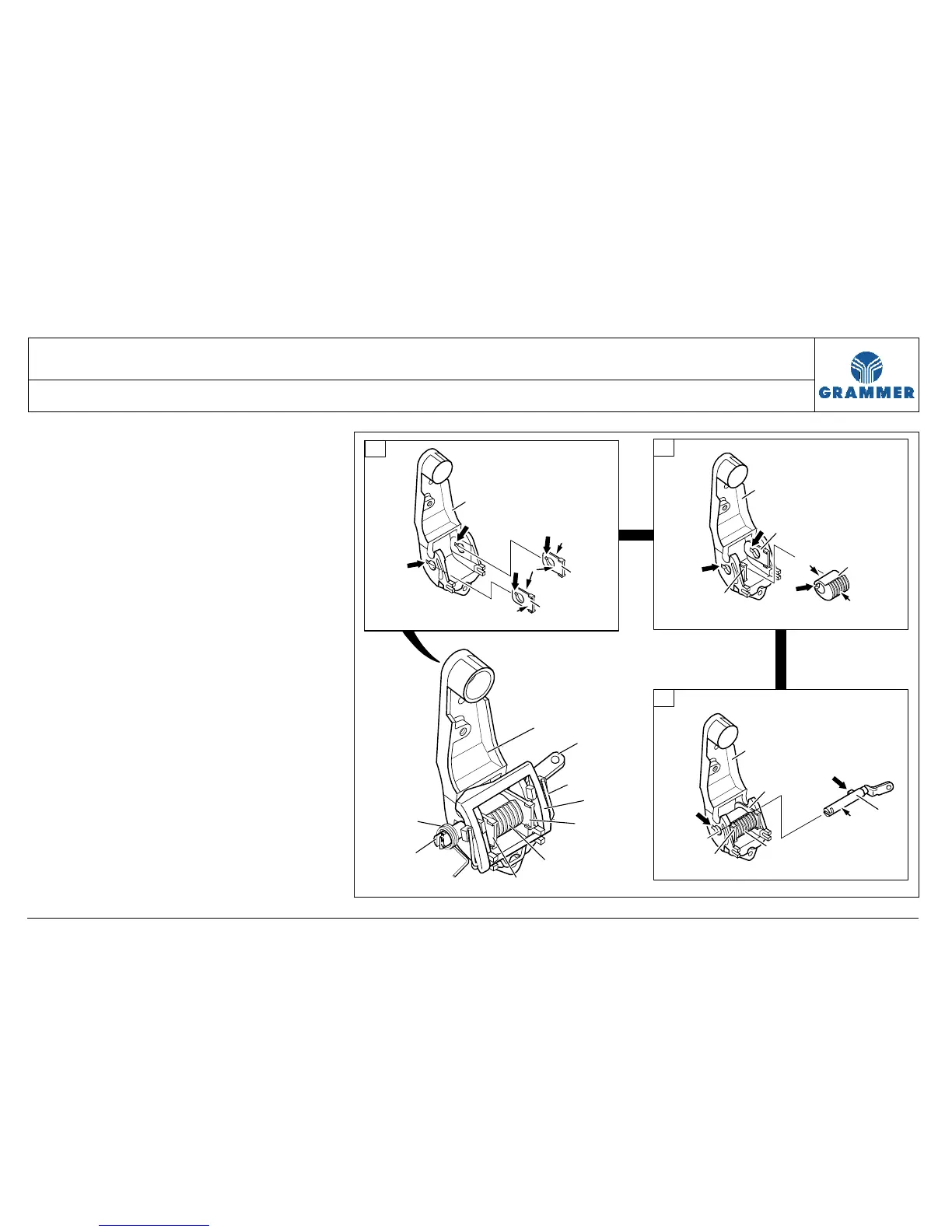

1.1 Insert two spacers (A/14) with their
round side into the right and left
milling hole of the bearing
support (A/1).
Notes:
• The groove (arrows) of the spacer
(A/14) must stay in alignment with
the groove (A/arrow) of the bearing
support (A/1).
• Apply acid-free multi-purpose
lubricant to the side surfaces (F) of
the spacers (A/14).
• The milling holes on the left and
right of the bearing support (A/1)
prevent moving of the spacers
(A/14).
