Grammer MSG 90.6PG - Page 283

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.32 Bearing support with backrest locking mechanism and hook-in
function – removal and installation
Page 8 of 14
REMOVAL INSTALLATION TABLE OF CONTENTS

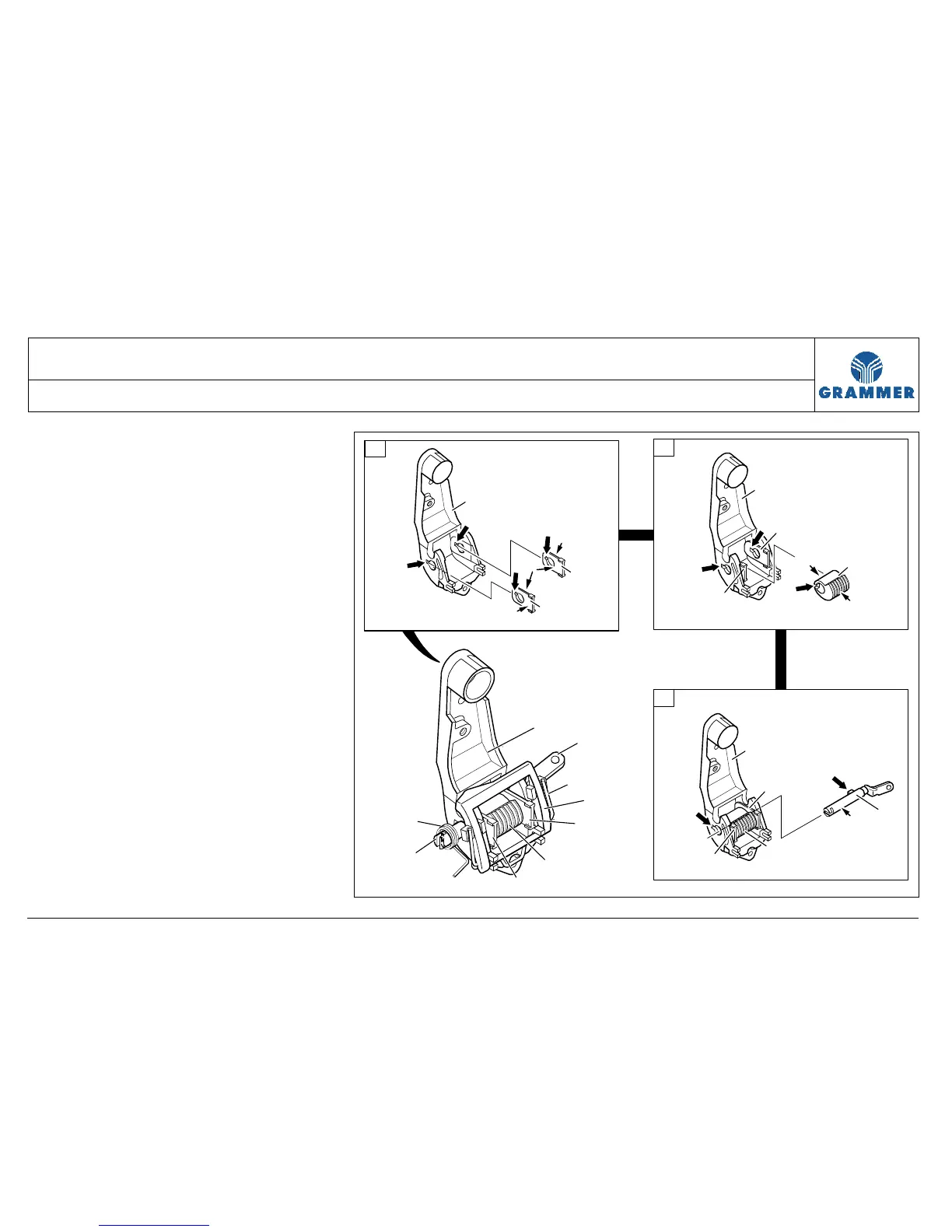

1.2 Insert the lock (B/13) into the
bearing support (B/1).
Notes:
• The flat side of the lock (B/13)
must point towards the bearing
support (B/1).
• The even and flat side of the lock
(B/13) must lie on the bottom of the
bearing support (B/1).
• The groove (B/arrow) of the lock
(B/13) must stay in alignment with
the groove (B/arrows) of the spacer
(B/14) and of the bearing
support (B/1).
• Apply acid-free multi-purpose
lubricant to the entire external
surface (F) of the lock (B/13).
1
1
14
14
14
A
14
F
F
F
13
F
F
1
14
13
15
14
F
B
C
7
1
14
14
16
15
17
15
13
2227
