Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.32 Bearing support with backrest locking mechanism and hook-in
function – removal and installation
Page 9 of 14

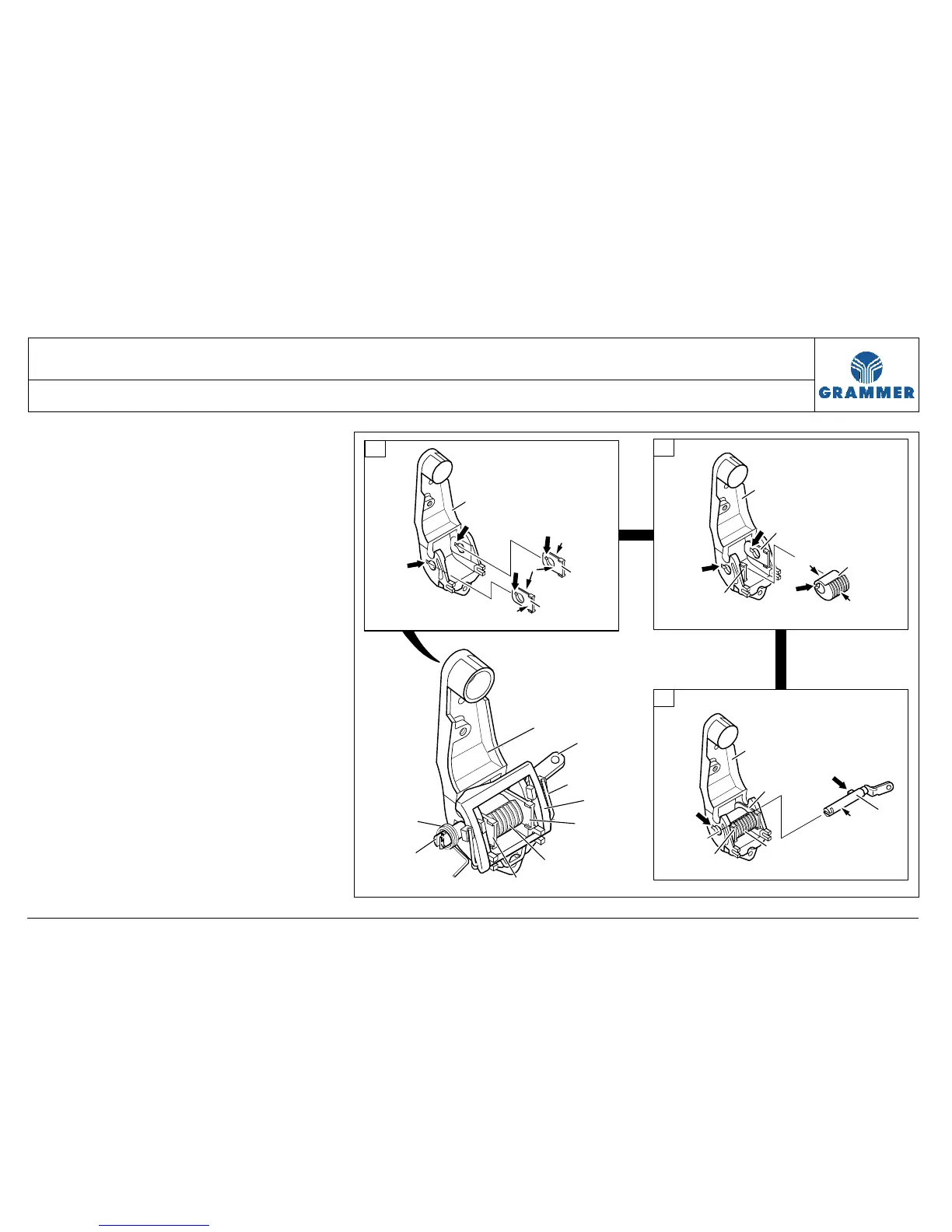

1.3 Push the catch element (C/15) from
the right through the bearing support
(C/1) as far as possible.
Notes:
• Before pushing it through, place
(turn) the catch element (C/15) in
such a way that the nose (C/arrow)
at the catch element (C/15) can be
guided through the groove (C/arrow)
in the bearing support (C/1).
• Apply acid-free multi-purpose
lubricant to the entire front surface
(F) of the catch element (C/15).
• Move the catch element (C/15) up
and down several times to check it
for easy running.
1
1
14
14
14
A
14
F
F
F
13
F
F
1
14
13
15
14
F
B
C
7
1
14
14
16
15
17
15
13
2227
