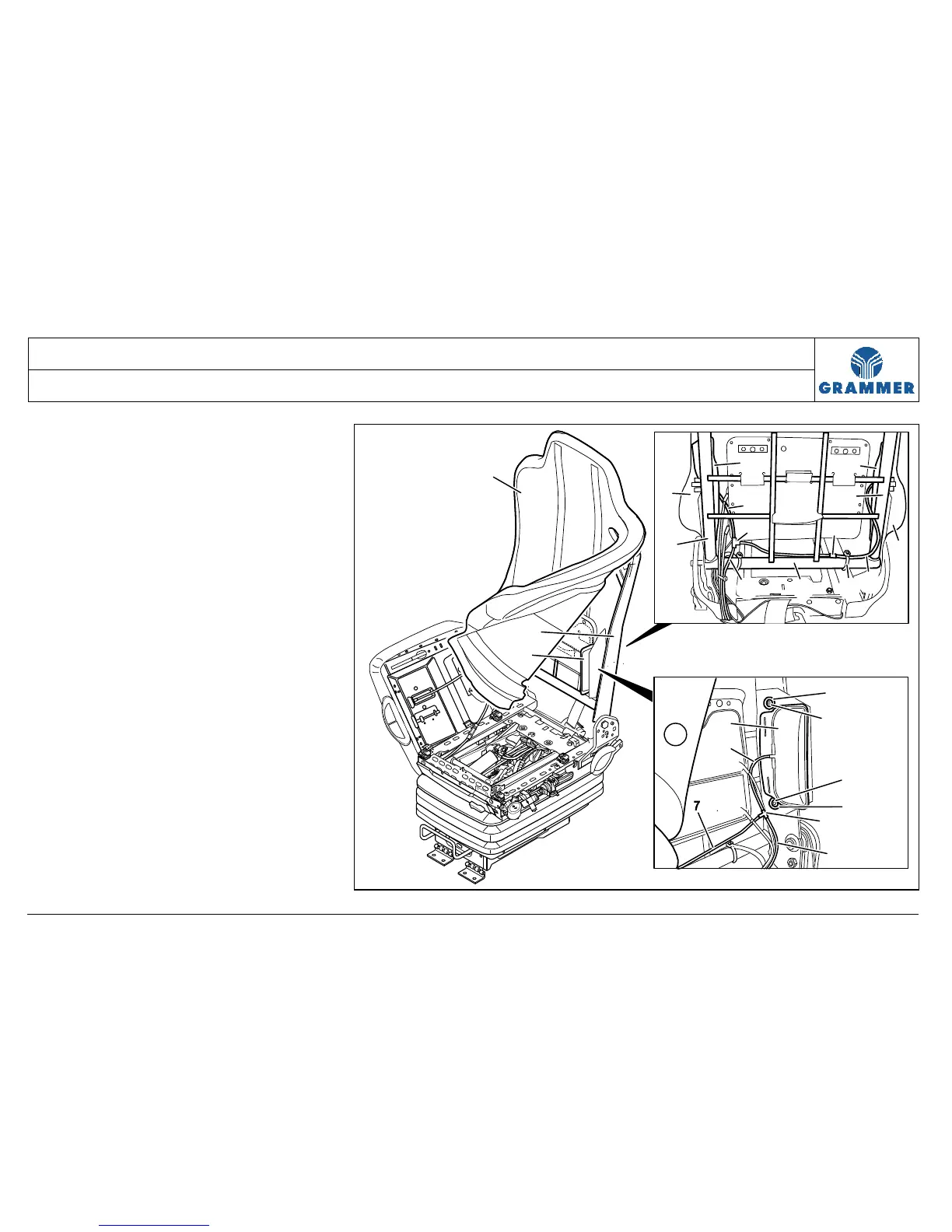

3.34 Lateral support adjustment – removal and installation
Page 2 of 7
REMOVAL / INSTALLATION TABLE OF CONTENTS
1 Lift off the seat cushion in position for
repair (Chapter 3.1).
2 Seat with armrests:
Remove the armrests (Chapter 3.24).
3 Seat with operator console and
armrest for electro-pneumatic
gearshift:
Remove the operator console for the
electro-pneumatic gearshift (EPS)
(see Chapter 3.25).
4 Remove the left covering in position
for repair (Chapter 3.4).
5 Remove the entire covering
(Chapter 3.5).
Note:
For seat models with fore/aft isolator,
remove only the left and right
covering. Do not remove the front
covering.
