3.34 Lateral support adjustment – removal and installation
Page 3 of 7
REMOVAL / INSTALLATION TABLE OF CONTENTS
6 Remove the backrest cover and the
seat belt (see Chapter 3.26).
Note:
Remove the seat belt at the backrest
only. Do not remove the belt roller and
the belt buckle.
7 Remove the backrest cover
(Chapter 3.31).

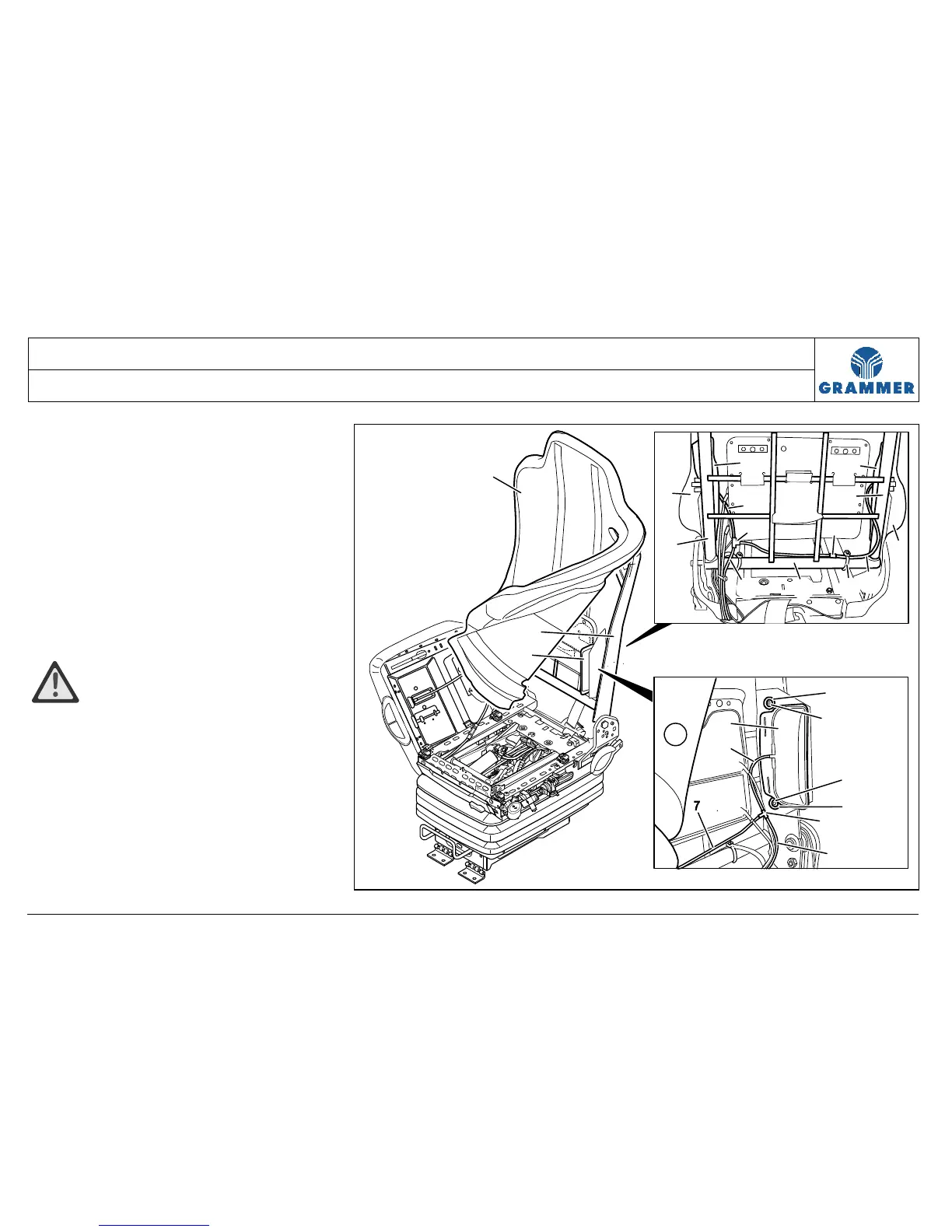

Removal and installation
ATTENTION Hydrostatic test!
The hydraulic test of the left and right
lateral support adjustment (1, 6) and of
the air hoses for the left and right
chamber (5, 7) should be performed
upon installation of the lateral support
adjustment.
2
3
1
5
12 2 9
7
3
6
8
2
4
3
2
1
1
5
10
10
11
11
12
4
3
