3.34 Lateral support adjustment – removal and installation
Page 6 of 7

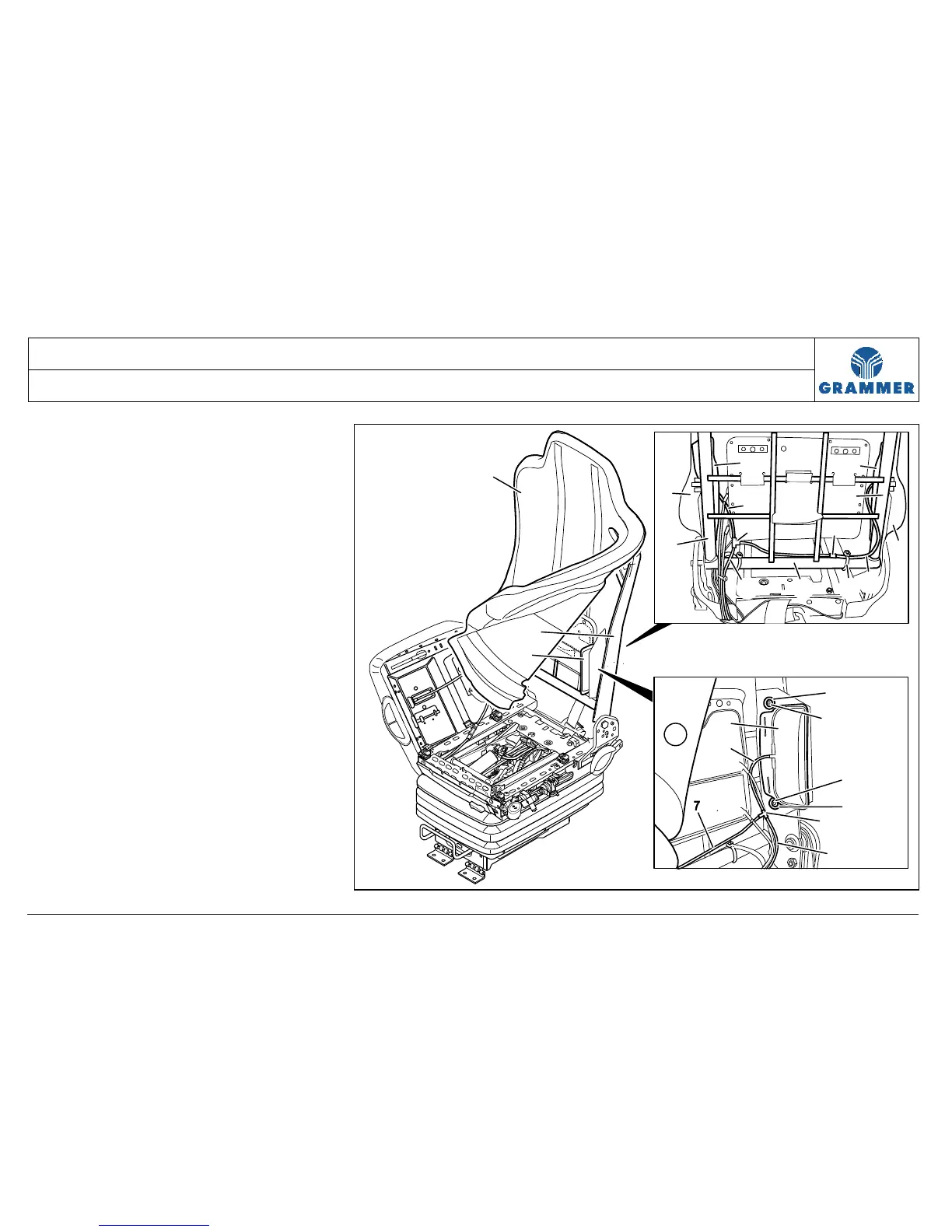

10 Lateral support adjustment,
right (6):
10.1 Carefully pull off the foam plastic
part (3) in the area of the left lateral
support adjustment (6) at the
backrest frame (2).
Installation note:
Glue together the foam plastic part
(3) and the backrest frame (2) at
the provided bonding surfaces by
means of appropriate adhesive
(e.g. Dunlop upholstery glue).
10.2 Drill off two rivet heads, drive out
the blind rivets (10) and remove
the washer (11).
