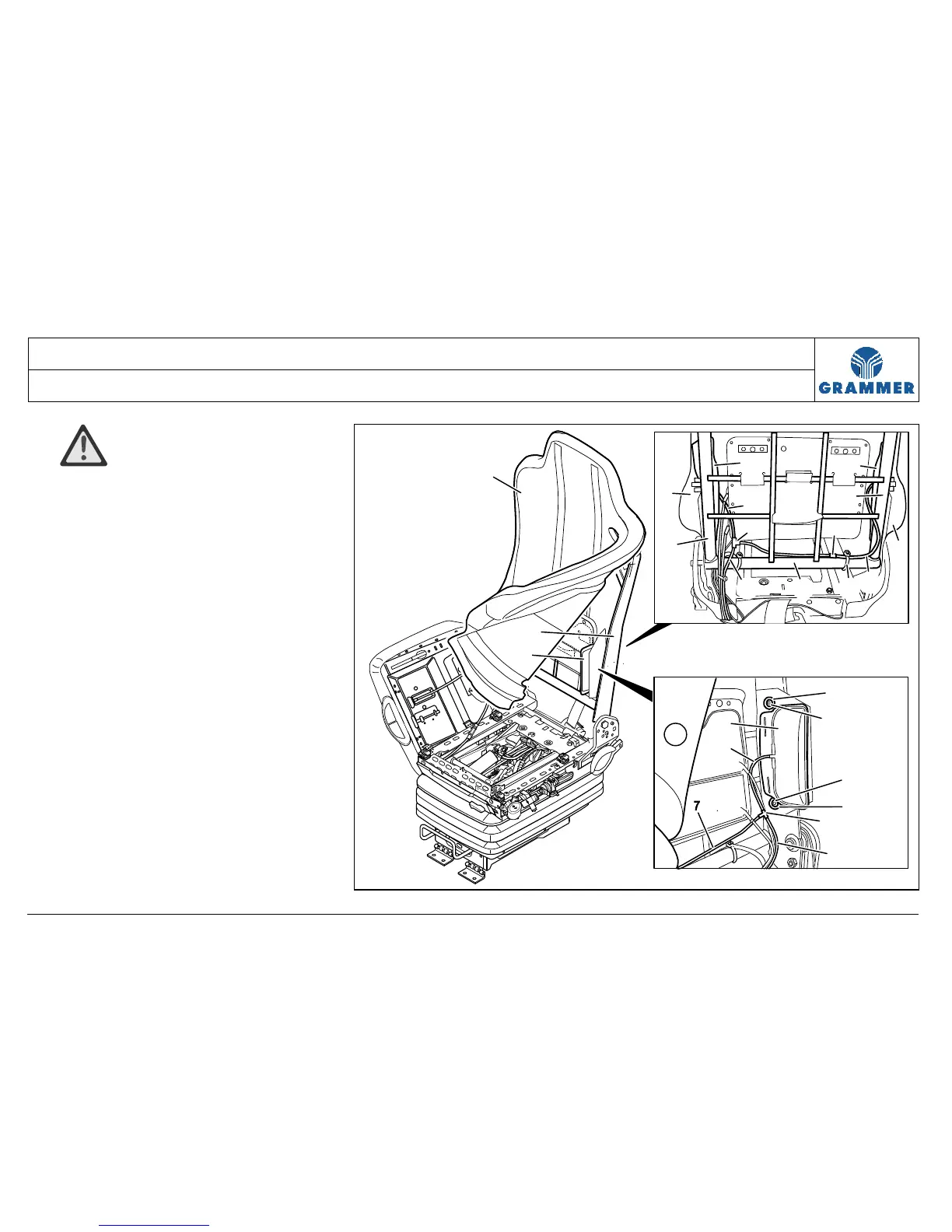

3.34 Lateral support adjustment – removal and installation
Page 5 of 7
REMOVAL / INSTALLATION TABLE OF CONTENTS
9.3 ATTENTION Damage!
Take care not to damage the air
hose for the left chamber (5).
Pull off the air hose for the left
chamber (5) at the hose
connector (4).
Installation note:
Push the air hose for the left
chamber (5) completely onto the
hose connector (4) by exerting
pressure.
9.4 Remove the left lateral support
adjustment (1) at the backrest
frame (2).
