3.35 Vertical shock absorber – removal and installation
Page 1 of 3

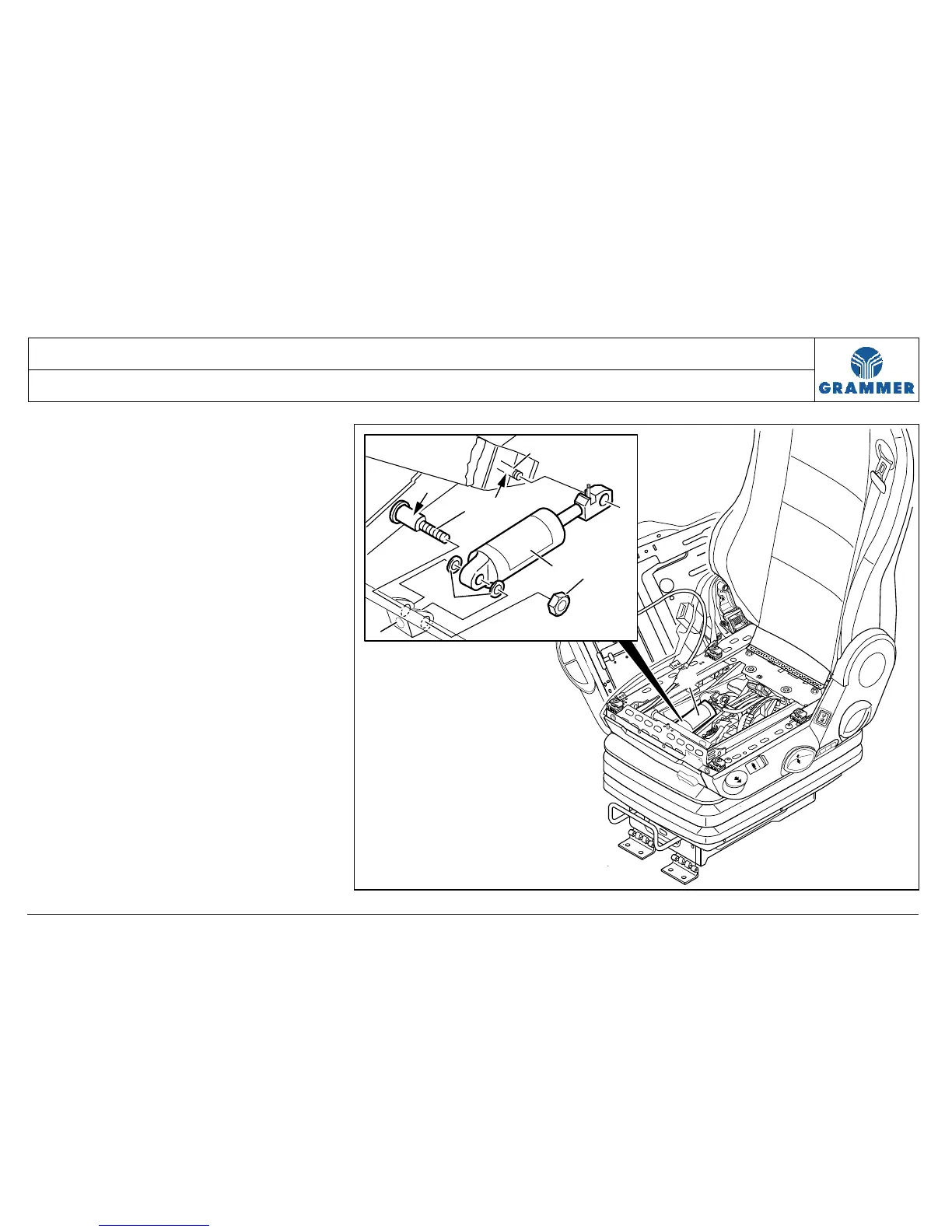

REMOVAL / INSTALLATION TABLE OF CONTENTS
(1) Vertical shock absorber
(2) Collar screw .... to replace, to grease
(3) Hexagon nut ......................... 25 Nm
(4) Bracket (swinging structure)
(5) Washer ............................... replace
(6) Axle (swinging structure) .. to grease
1 Lift off the seat cushion in position for
repair (Chapter 3.1).
2 Remove the Bowden pull wire and the
bearing at the vertical shock absorber
(see Chapter 3.11).
2228
1
1
2
4
3
6
5
F
F
