Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.35 Vertical shock absorber – removal and installation
Page 2 of 3
Removal and installation
3 WARNING Risk of crushing!
Bring the seat into the highest position
and secure the swinging structure to
the front plastic rollers of the lower
suspension part by means of
appropriate spacers.

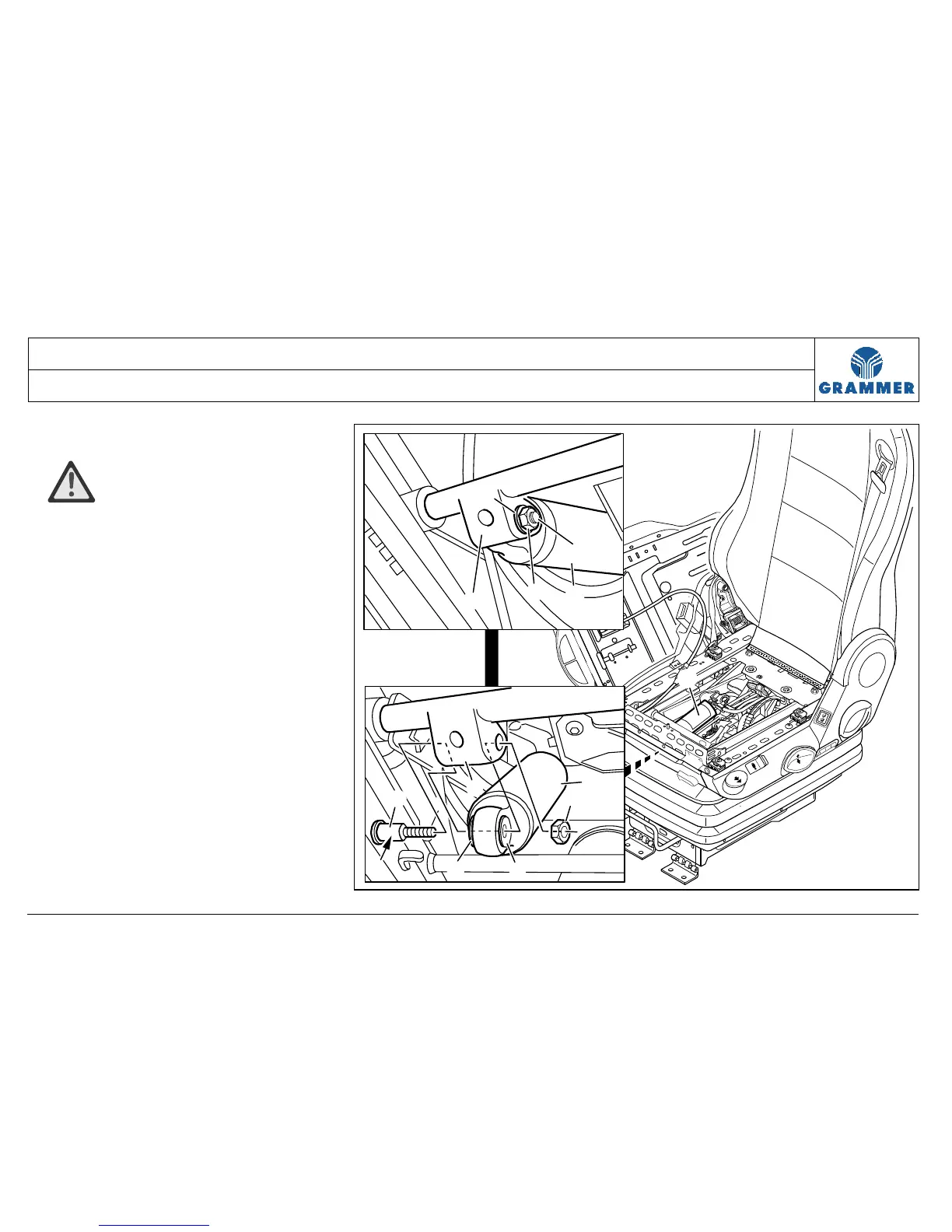

4 Unscrew the hexagon nut (3) at the
collar screw (2).
Installation note:
Hexagon nut (3), 25 Nm.
5 Pull out the collar screw (2) at the
bracket (4) and at the vertical shock
absorber (1) and remove two
washers (5).
