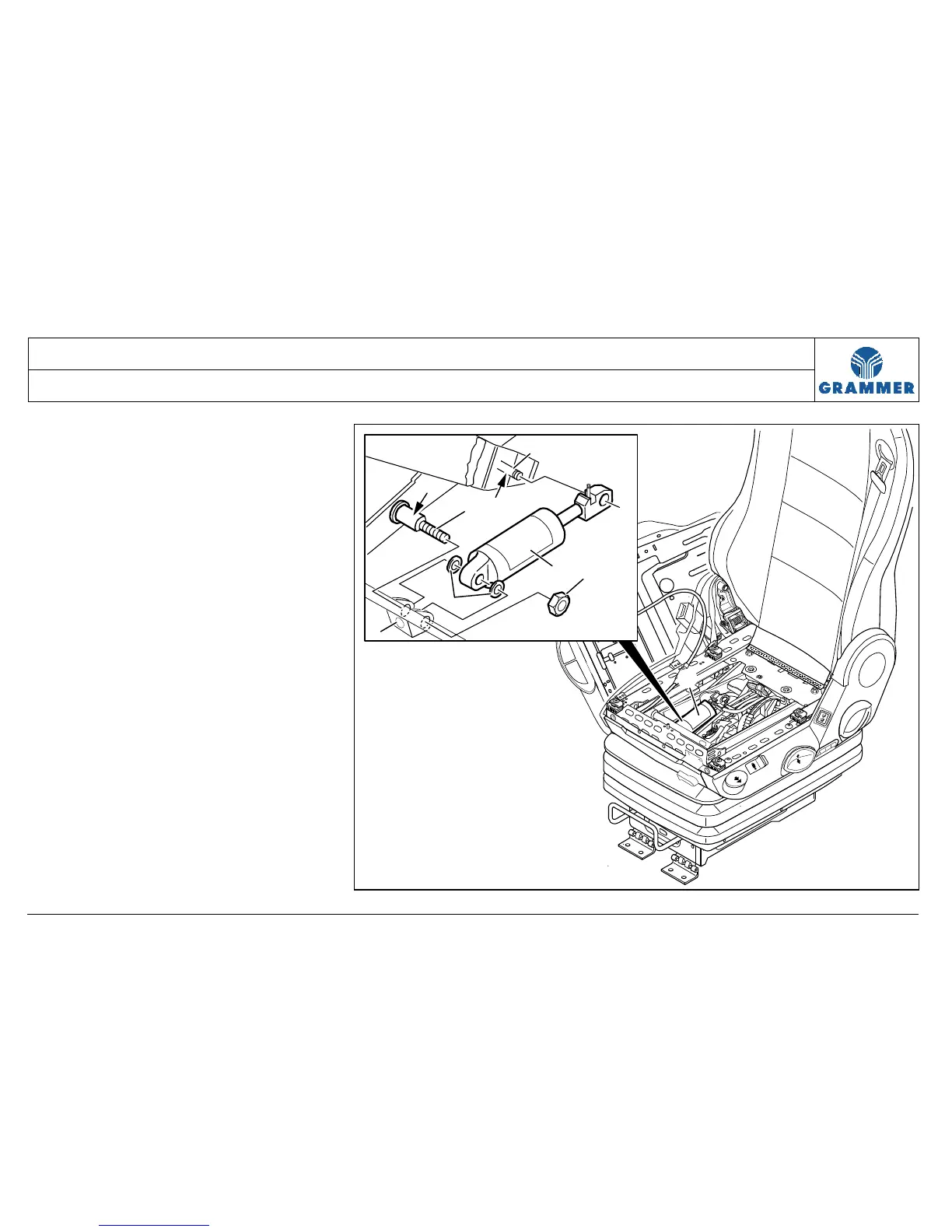

3.35 Vertical shock absorber – removal and installation
Page 3 of 3
REMOVAL / INSTALLATION TABLE OF CONTENTS
Installation notes:
• Replace the collar screw (2).
• Apply acid-free multi-purpose
lubricant to the entire collar (F) of the
collar screw (2).
• Replace the washer (5).
6 Move the seat to the middle position in
order to be able to pull off the vertical
shock absorber (1) at the axle (6).
7 Pull off the vertical shock absorber (1)
at the axle (6) and remove it.
Installation notes:
• Install the vertical shock absorber (1)
with the labelling at the top.
• Apply acid-free multi-purpose
lubricant to the entire surface (F) of
the axle (6).
8 Re-install the components in the
reverse order of their removal.
2228
1
1
2
4
3
6
5
F
