Grammer MSG 90.6PG - 3.36 Air spring - removal and installation

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c

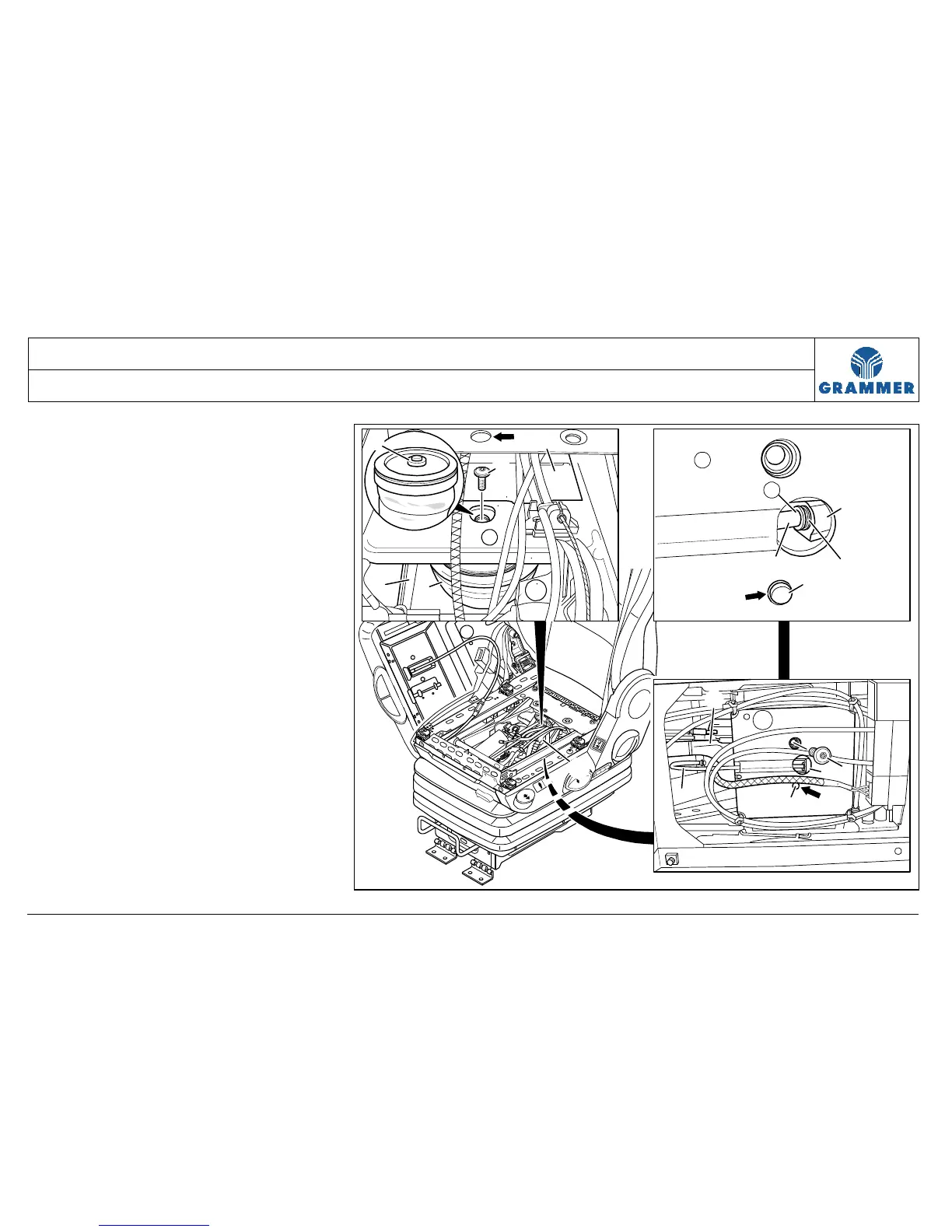

3.36 Air spring – removal and installation
Page 1 of 8
REMOVAL / INSTALLATION TABLE OF CONTENTS
(1) Air spring
(2) Collar screw (inner race) ......... 5 Nm
(3) Upper air spring support (swinging
structure)
(4) Lower air spring support (swinging
structure)
(5) Thread collar (air spring)
(6) Air hose (blue) to the air spring (Z)
(7) Retaining ring of quick coupling
(8) Pin (air spring)
(9) Collar screw (inner race) ......... 5 Nm
(10) Upper suspension part
(11) Level control
6
11
8
1
9
4
11
2
3
11
4
1
5
1
7
6
8
4
Z
10
