Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.36 Air spring – removal and installation
Page 3 of 8
REMOVAL / INSTALLATION TABLE OF CONTENTS
ATTENTION Hydrostatic test!
The hydraulic test of the seat should be
performed upon installation of the air
spring (1). To do this, apply 60 kg load to
the seat for 24 hours. The lowering
within this time must not exceed 15 mm.

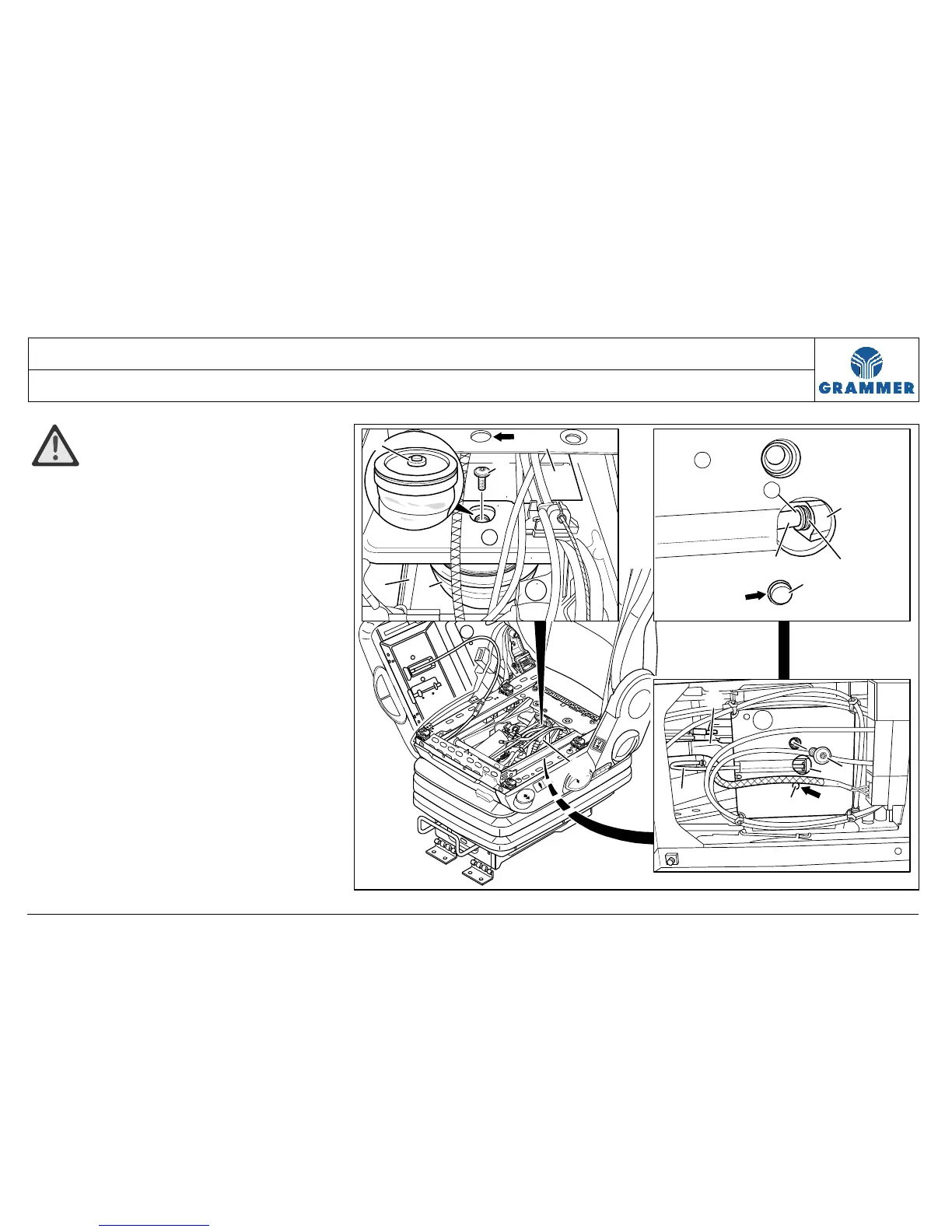

1 Lift off the seat cushion in position for
repair (Chapter 3.1).
2 Detach the Bowden pull wire for quick
lowering of the seat at the level control
(retainer and valve lever) (see
Chapter 3.7).
6
11
8
1
9
4
11
2
3
11
4
1
5
1
7
6
8
4
Z
10
2238
