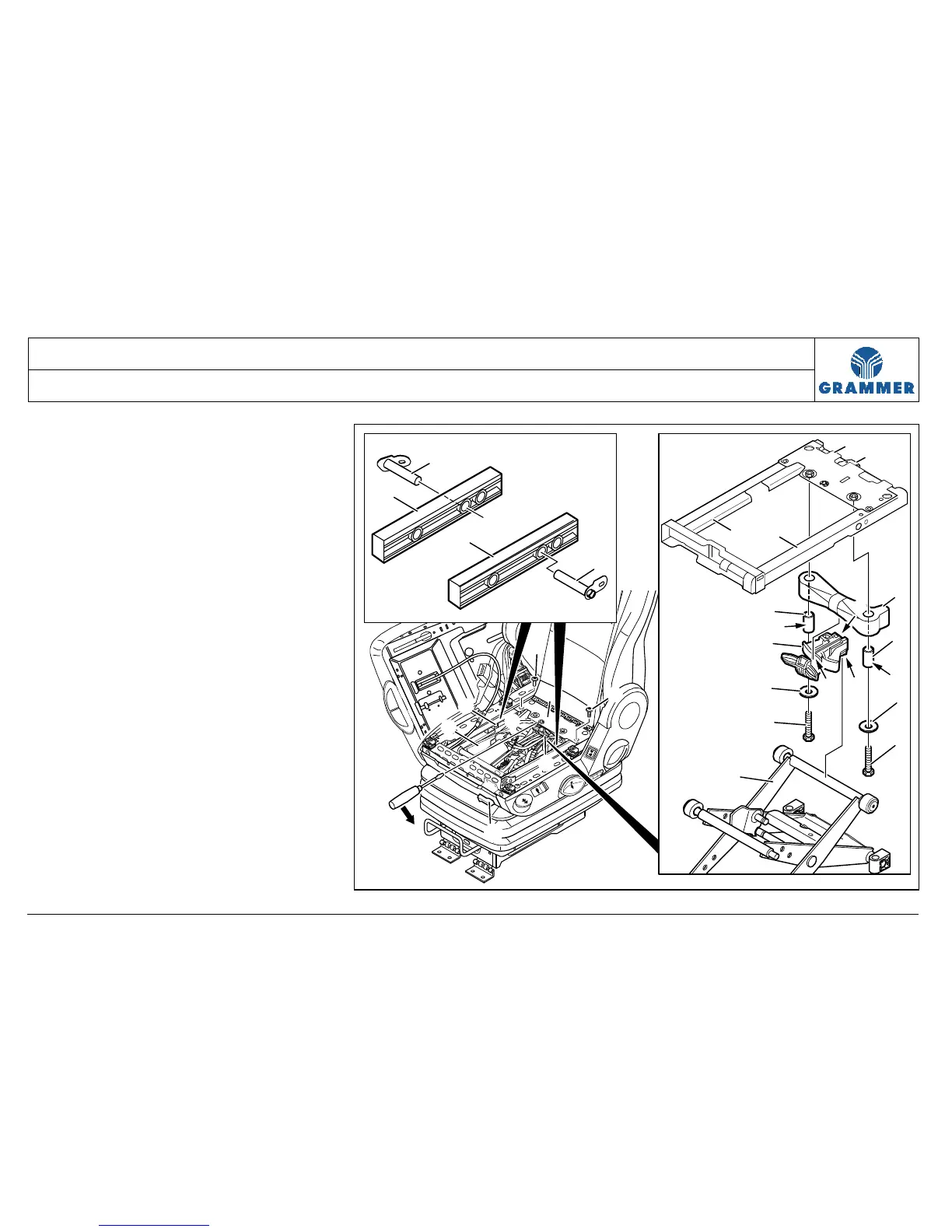

3.37 Fore/aft isolator – removal and installation (delivery option)
Page 3 of 5
REMOVAL / INSTALLATION TABLE OF CONTENTS
4 Unscrew two rounded flange head
screws (2).
Installation note:
Rounded flange head screw (2),
5 Nm.
5 Pull off two stoppers(1) at the studs
(12) and remove them from the
running surfaces (11) of the upper
suspension part (3).
6 Unscrew two hexagon bolts (9) and
remove the washers (8).
Installation note:
Hexagon bolt (9), 25 Nm.
