Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c

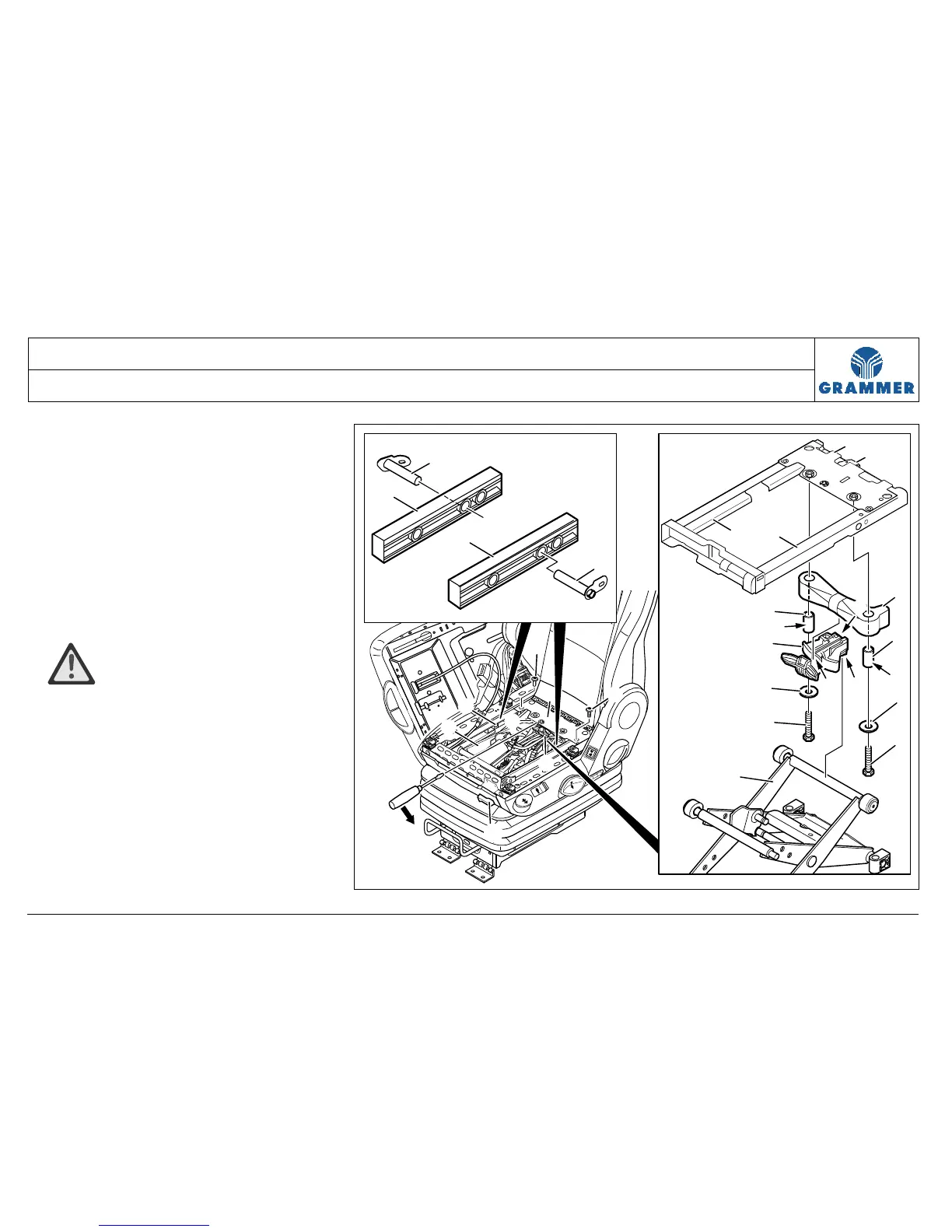

3.37 Fore/aft isolator – removal and installation (delivery option)
Page 2 of 5
1 Lift off the seat cushion in position for
repair (Chapter 3.1).
Removal and installation
2 To unlock the fore/aft isolator, turn the
lever for the fore/aft isolator (13)
upwards.
3 Move the seat to a high position and
secure it.
WARNING Risk of crushing!
Secure the obtained height position by
means of appropriate spacers
between the upper suspension part
and the lower suspension part.
Note:
The swinging structure (6) has to
remain movable in the entire running
surface area (11).
9
12
11
11
5
7
7
4
8
8
6
9
3
12
1
1
1
2
2
4
13
5
3
6
F
F
F
F
F
2247
10
