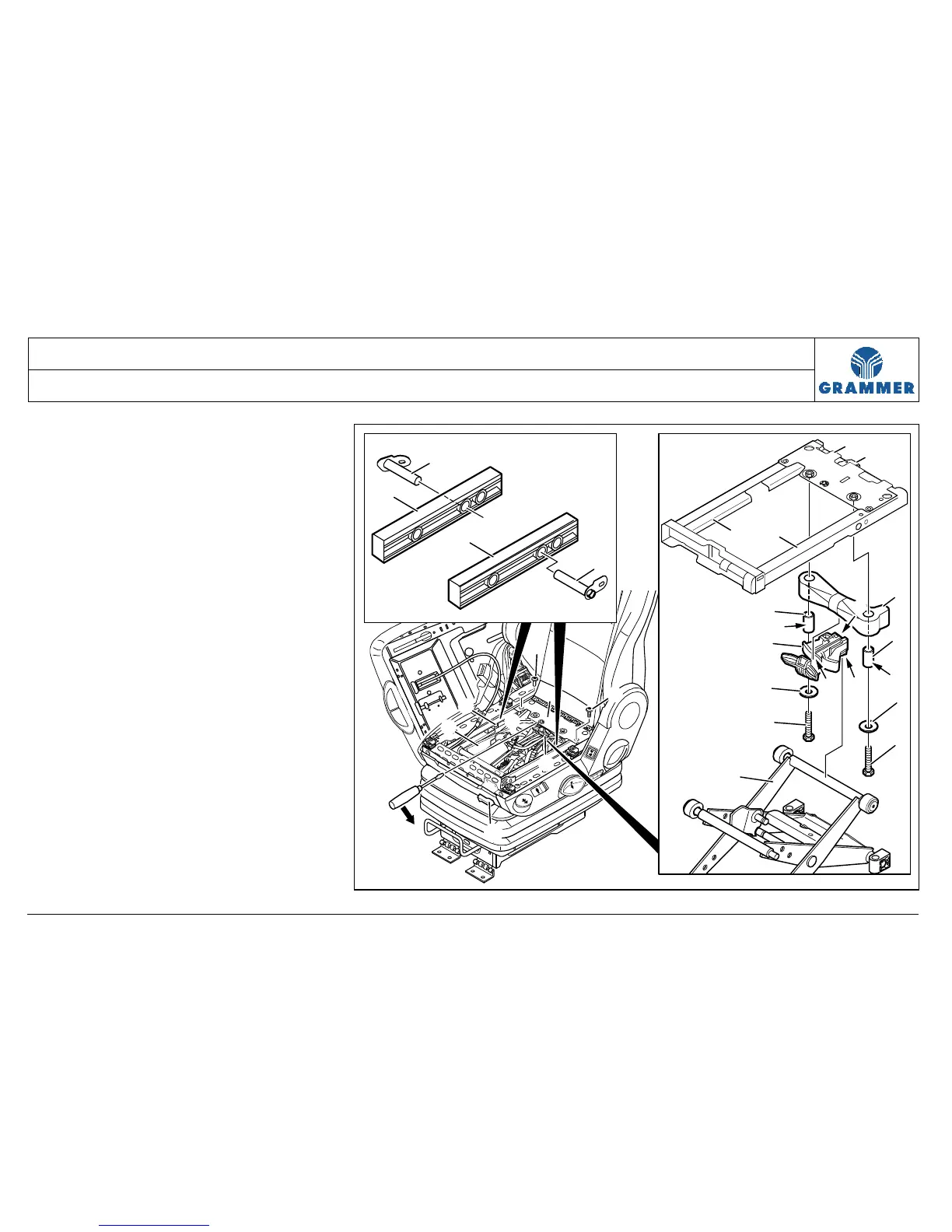

3.37 Fore/aft isolator – removal and installation (delivery option)
Page 1 of 5
REMOVAL / INSTALLATION TABLE OF CONTENTS
(1) Stopper
(2) Rounded flange head screw
(inner race) .............................
5 Nm
(3) Upper suspension part
(4) Clamp ..............................
to grease
(5) Rubber spring
(6) Swinging structure
(7) Tube section .................... to grease
(8) Washer
(9) Hexagon bolt ........................ 25 Nm
(10) Stop lever
(11) Running surface (U-shaped rail)
(12) Stud
(13) Lever for fore/aft isolator
