Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.36 Air spring – removal and installation
Page 8 of 8
REMOVAL / INSTALLATION TABLE OF CONTENTS

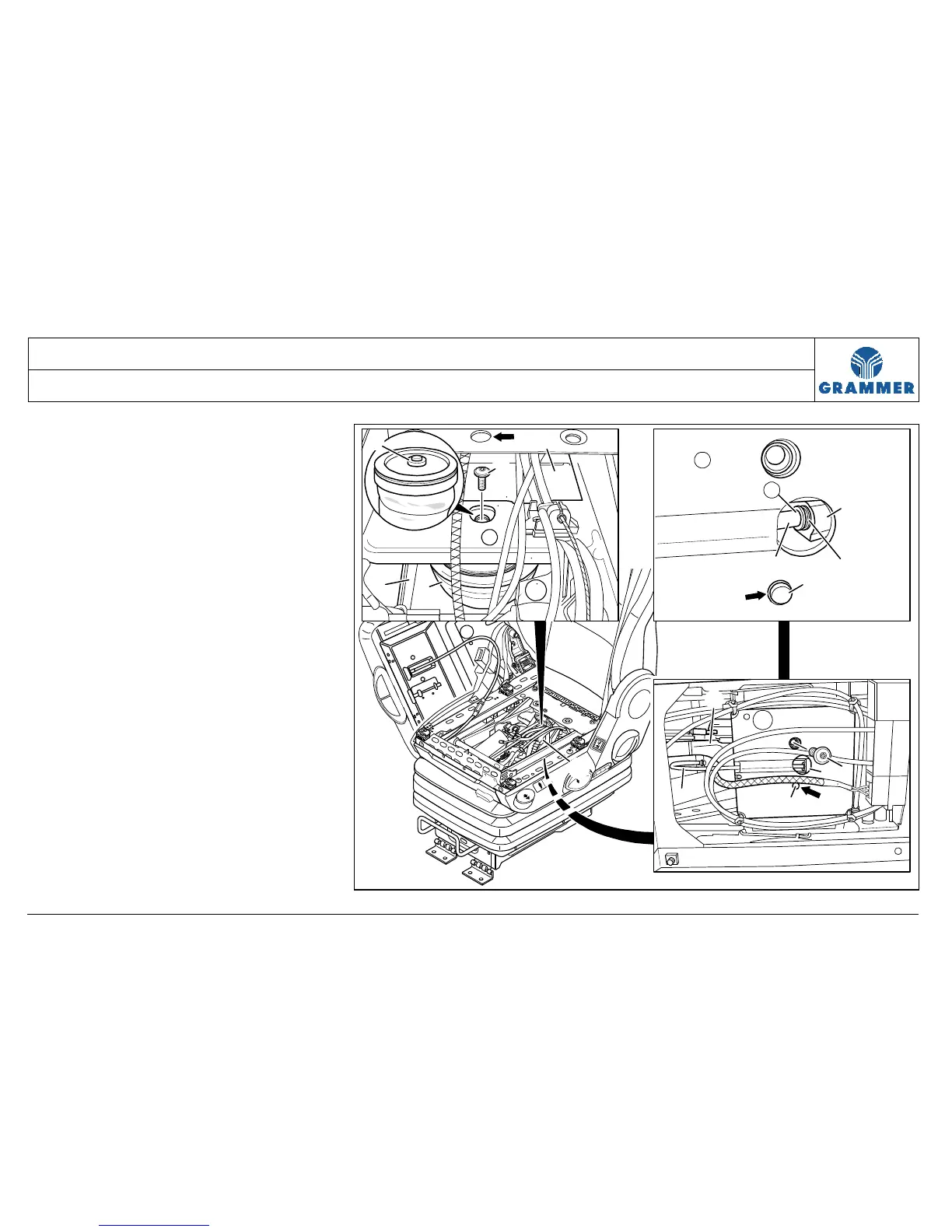

13 Pull out the air spring (1) between
the upper and lower air spring
support (3, 4) and remove it from the
seat in downward direction.
Note:
Press the removed level control (11)
aside when removing the air
spring (1).
Installation note:
Insert the air spring (1) at the lower
air spring support (4) so that the pin
(8) at the bottom of the air spring (1)
engages in the drill hole (arrow) of
the air spring support (4).
14 Re-install the components in the
reverse order of their removal.
6
11
8
1
9
4
11
2
3
11
4
1
5
1
7
6
8
4
Z
10
