Grammer MSG 90.6PG - Page 311

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.36 Air spring – removal and installation
Page 7 of 8
REMOVAL / INSTALLATION TABLE OF CONTENTS

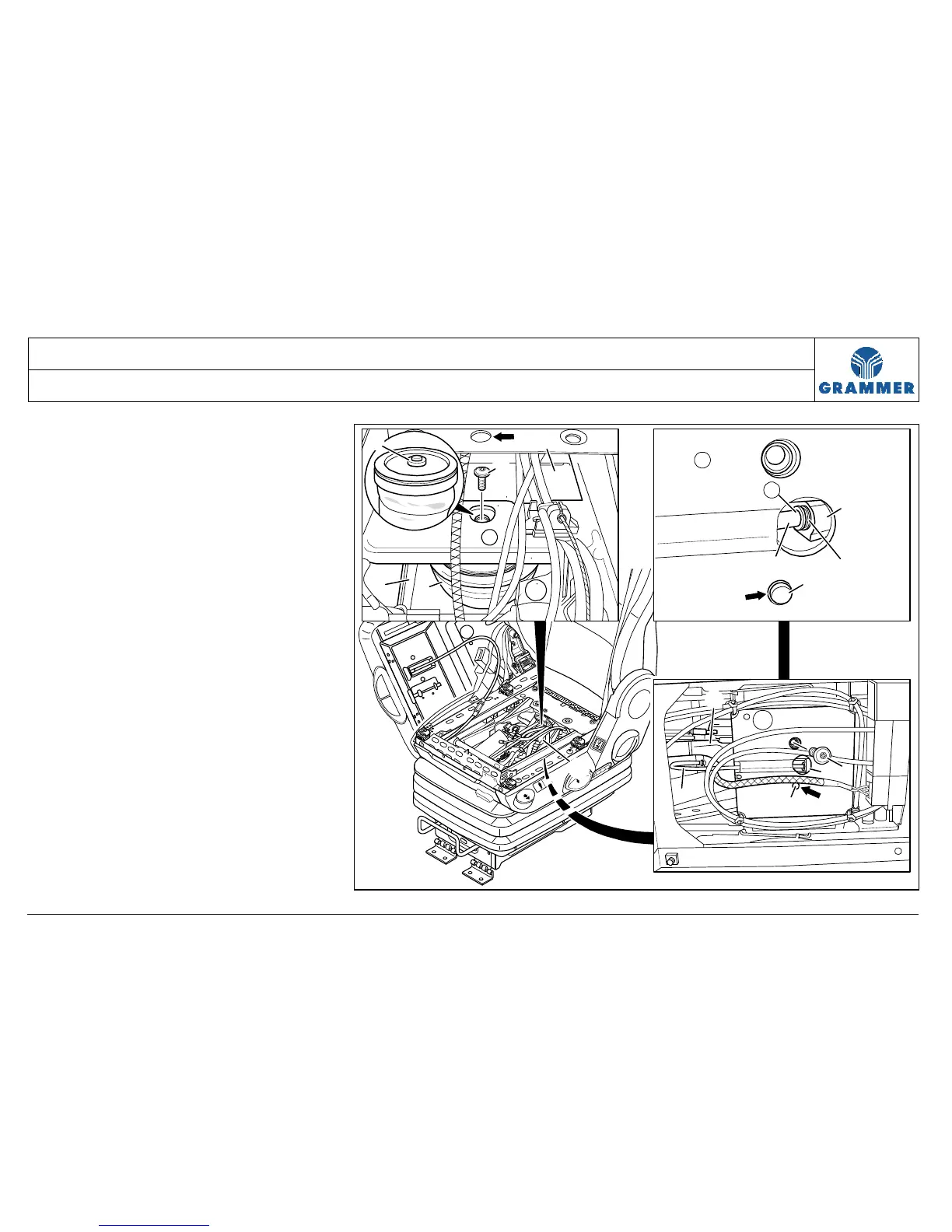

11 Unscrew the collar screw (9).
Installation note:
Collar screw (9), 5 Nm.
12 Press the retaining ring of the quick
coupling (7) against the air spring (1)
and pull the air hose (6) out of the air
spring (1).
Installation notes:
• Insert the air hose (6) into the
retaining ring of the quick coupling
(7) as far as possible.
• The air hose (6) is automatically
locked after it has been connected.
