Grammer MSG 90.6PG - Page 310

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.36 Air spring – removal and installation
Page 6 of 8
REMOVAL / INSTALLATION TABLE OF CONTENTS

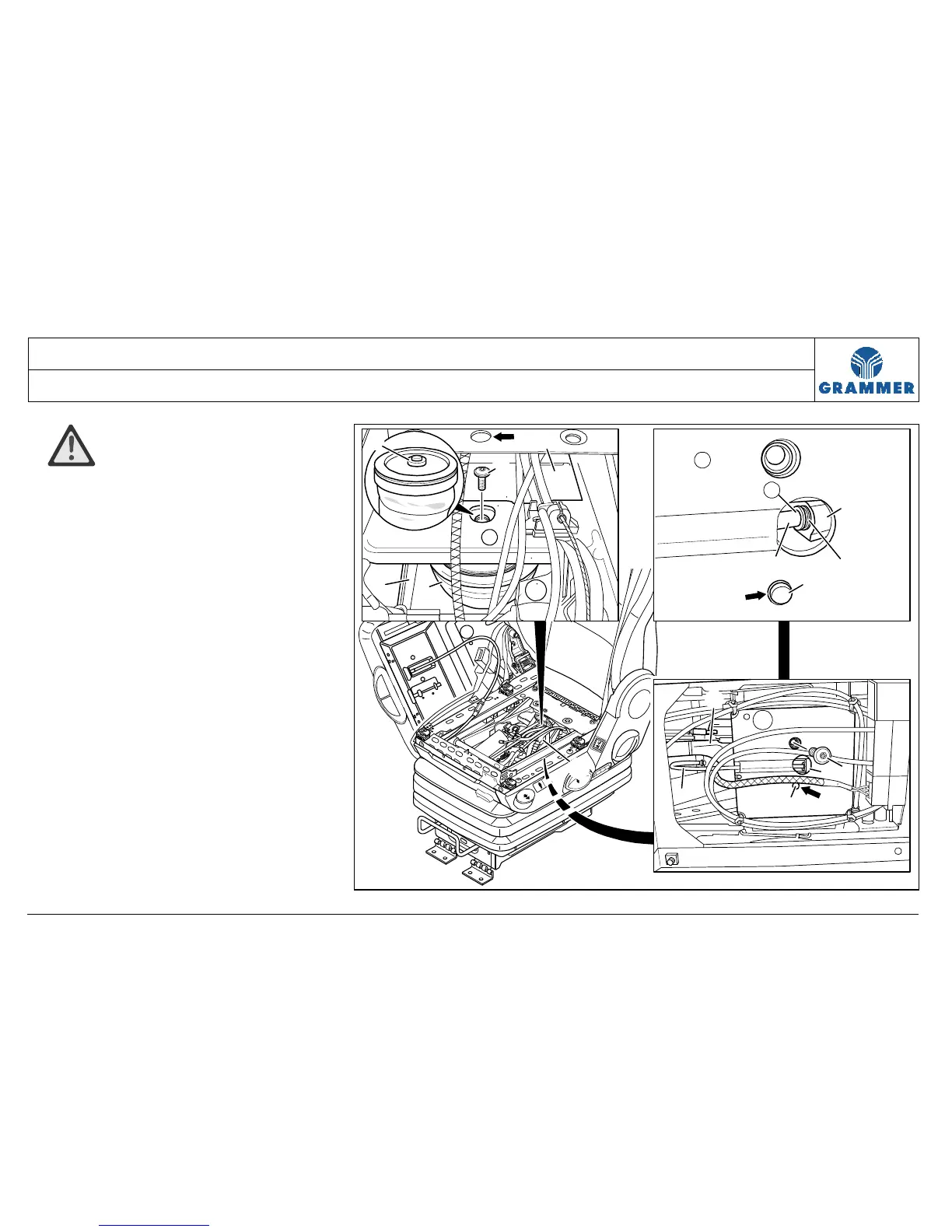

9 WARNING The pressure in the
pneumatic system might cause injury!
The pneumatic system is to be vented
before removing the air hose (1) (e.g.
by means of the quick lowering).
10 Unscrew the collar screw (2) through
the mounting hole (arrow) in the
upper suspension part (10).
Installation notes:
• Collar screw (2), 5 Nm.
• The thread collar (5) of the air
spring (1) must lie flush in the hole of
the upper air spring support (3).
