3.37 Fore/aft isolator – removal and installation (delivery option)
Page 5 of 5
REMOVAL / INSTALLATION TABLE OF CONTENTS

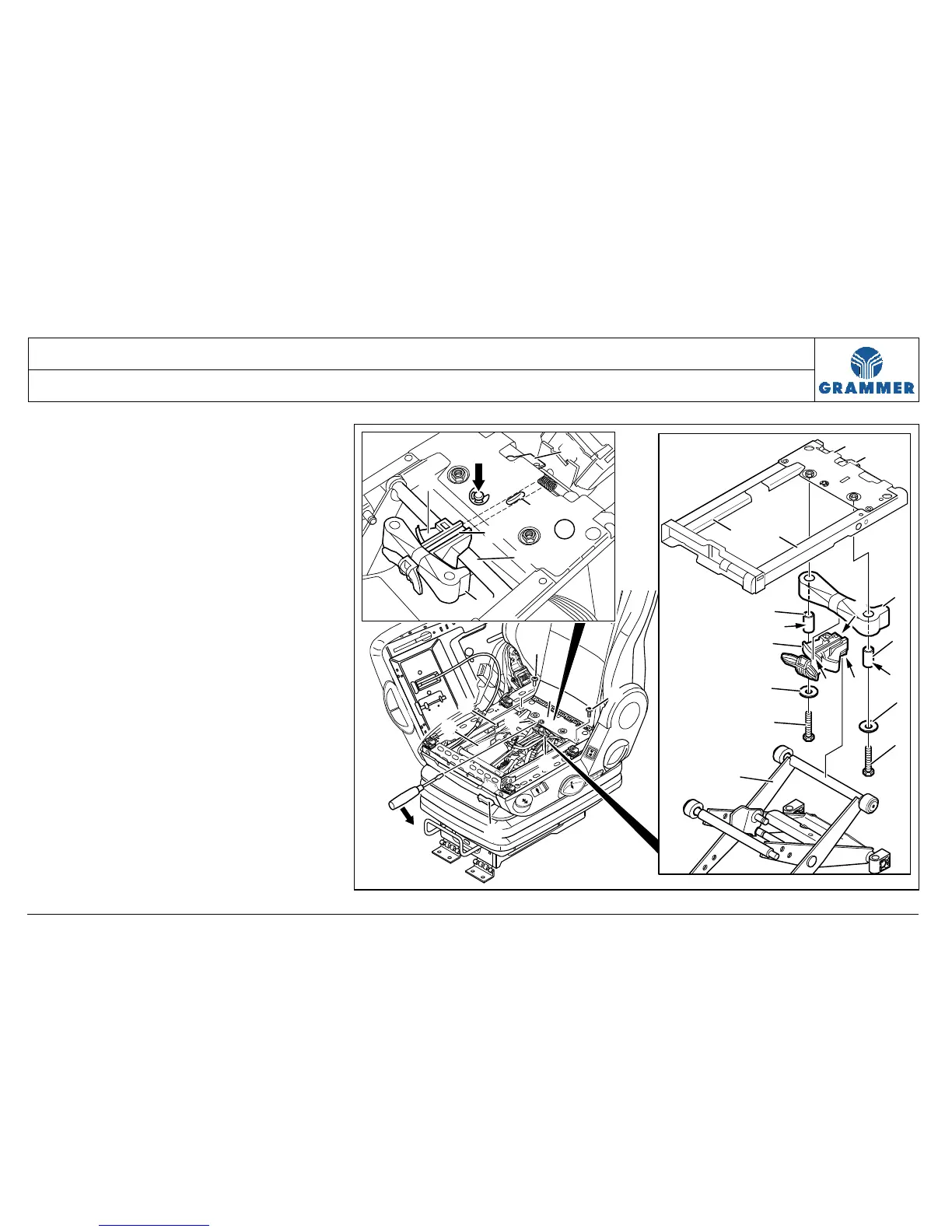

10 Press off the clamp (4) at the
swinging structure (6).
Installation notes:
• The groove (14) of the clamp (4)
must engage in the guide (13) at the
upper suspension part (3).
• Apply acid-free multi-purpose
lubricant to the entire groove (F) and
running surface (F) of the clamp (4).
11 Pull the rubber spring (5) out of the
clamp (4).
12 Pull two tube pieces (7) out of the
rubber spring (5).
Installation note:
Apply acid-free multi-purpose
lubricant to the entire external
surface (F) of the tube pieces (7).
13 Re-install the components in the
reverse order of their removal.
