Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c

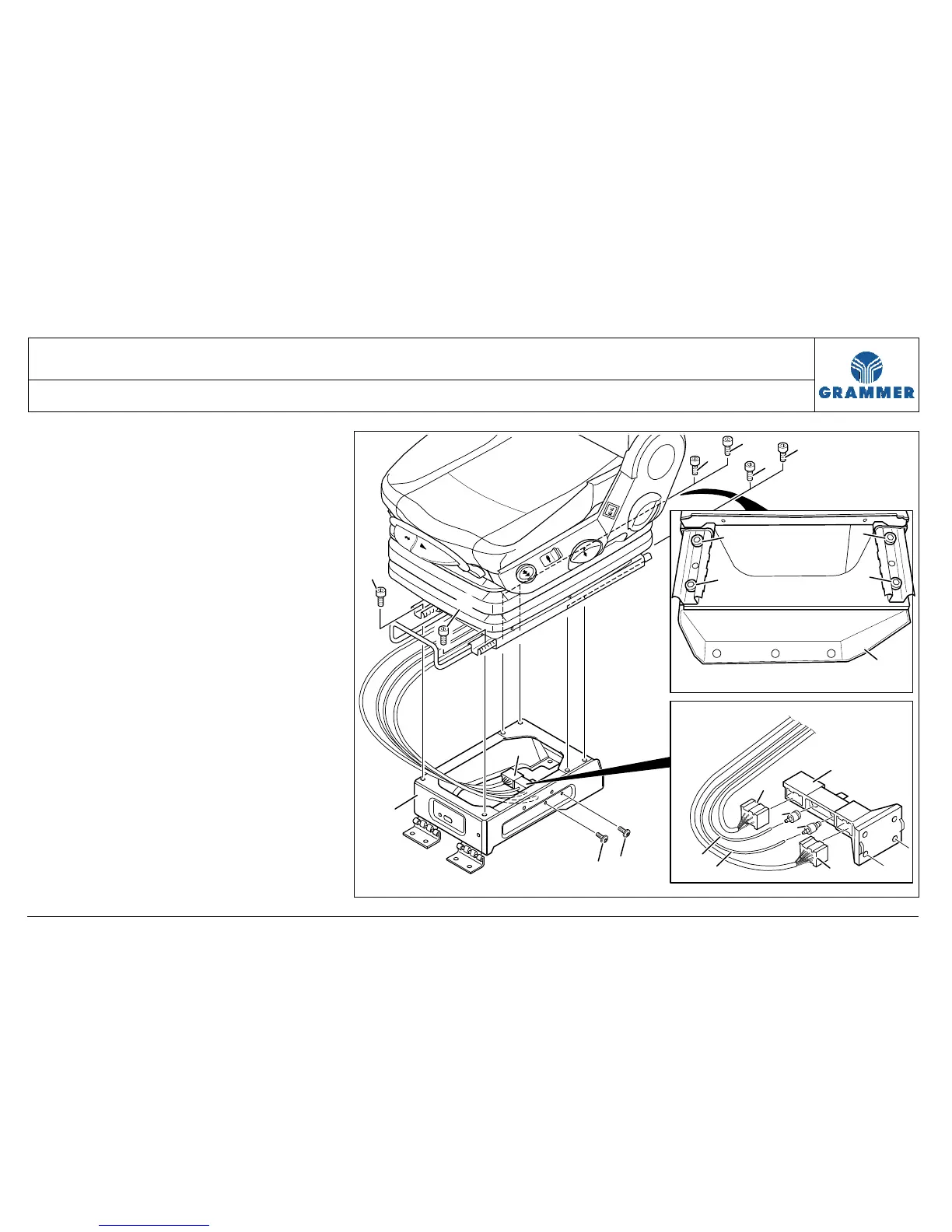

3.39.1 Supporting structure and pin contact strip –
removal and installation (Actros)
Page 1 of 3
REMOVAL / INSTALLATION TABLE OF CONTENTS
(1) Supporting structure
(2) Pin contact strip
(3) Rounded head screw
(inner race) ............................. 5 Nm
(4) Micro-encapsulated cap
screw .................. to replace, 25 Nm
(5) Plug of the cable for vehicle
connection
(6) Connection for air intake
(7) Connection for air exhaust
(8) Plug of EPS-cable (delivery option)
(9) Air hose for air exhaust
(10) Air hose for air intake
Note:
For removal and installation of other
supporting structures, please refer to the
installation instructions on "Linea &
Tourea" (material no.: 1 089 979).
2230
2
4
3
3
1
4
4
4
4
4
4
4
1
2
5
6
7
8
9
10
4
4
