Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c

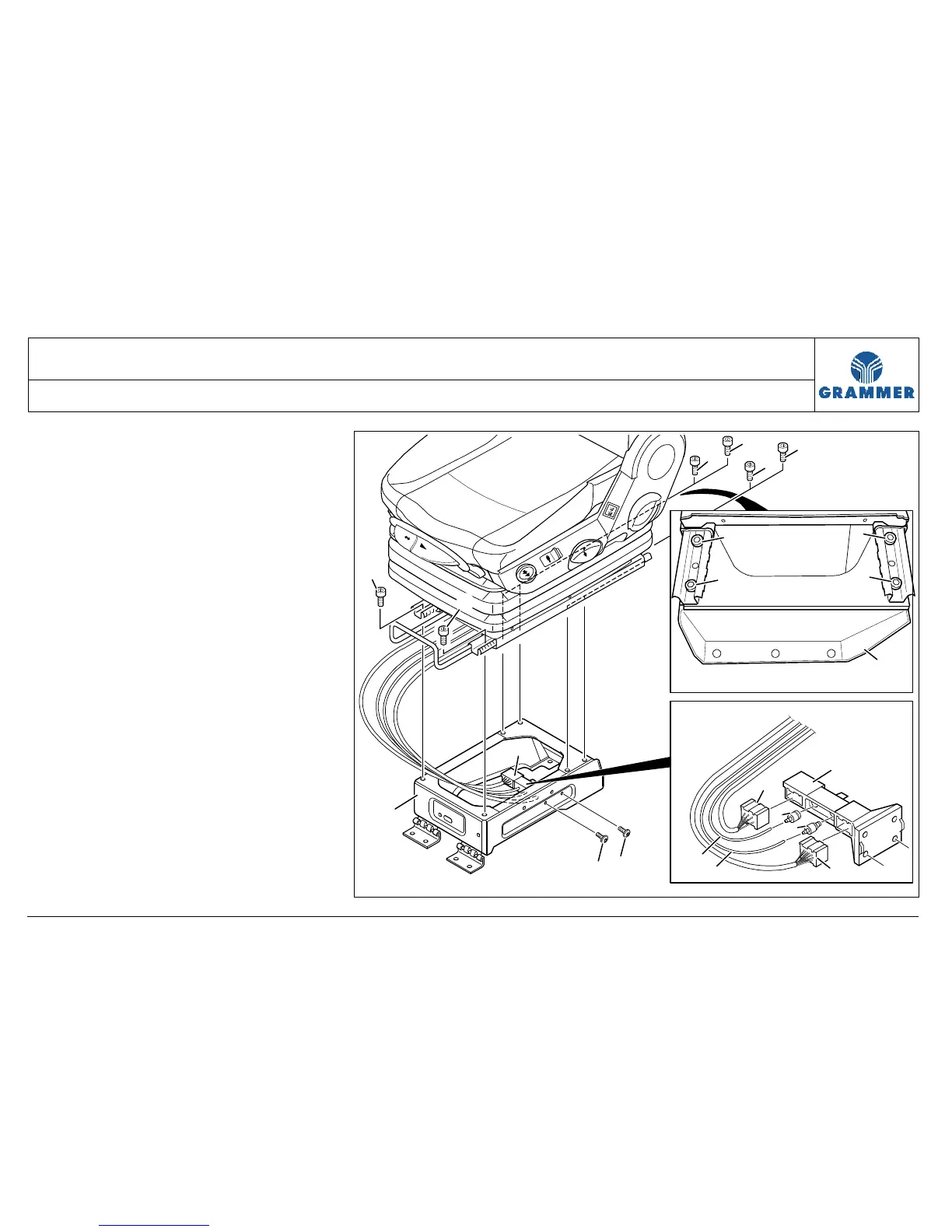

3.39.1 Supporting structure and pin contact strip –
removal and installation (Actros)
Page 2 of 3
REMOVAL / INSTALLATION TABLE OF CONTENTS
Removal and installation
1 Unscrew two rounded head screws (3)
and lay the pin contact strip (2) down.
Installation note:
Rounded head screw (3), 5 Nm.
2 Push the seat backwards as far as
possible and unscrew two micro-
encapsulated cap screws (4) at the
front.
Installation note:
Replace the micro-encapsulated cap
screw (4), 25 Nm.
3 Push the seat forwards as far as
possible and unscrew four micro-
encapsulated cap screws (4) at the
rear.
Installation note:
Replace the micro-encapsulated cap
screw (4), 25 Nm.
2230
2
4
3
3
1
4
4
4
4
4
4
4
1
2
5
6
7
8
9
10
4
4
