Grammer MSG 90.6PG - Page 334

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.40.1 Seat fore/aft adjustment – removal and installation (Actros)
Page 1 of 3
REMOVAL / INSTALLATION TABLE OF CONTENTS

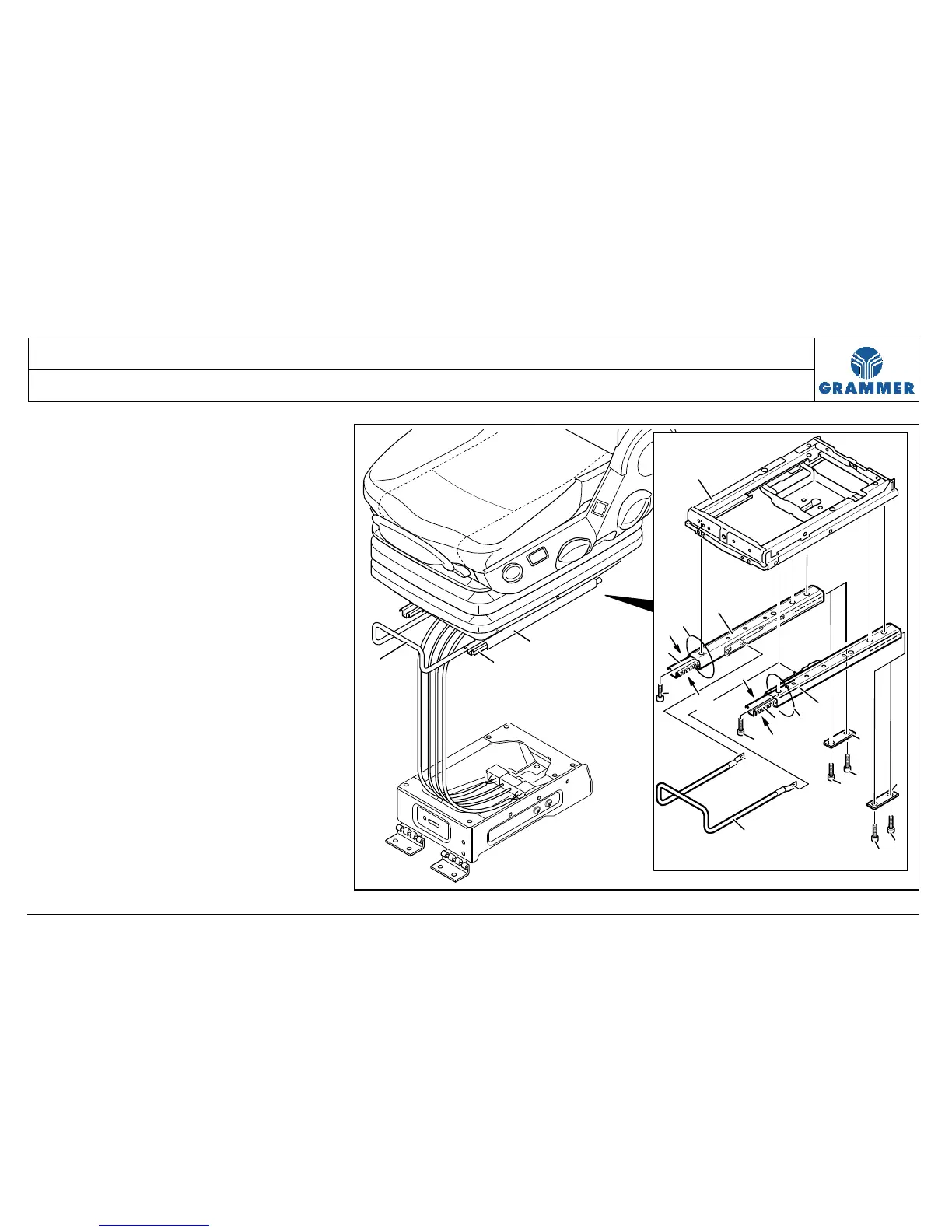

(1) Lever for seat fore/aft adjustment
(2) Locking rail ...................... to grease
(3) Adjusting rail
(4) Seat fore/aft adjustment
= (2) + (3)
(5) Micro-encapsulated cap
screw .................. to replace, 25 Nm
(6) Plate with mounting holes
(7) Micro-encapsulated cap
screw .................. to replace, 25 Nm
(8) Lower suspension part
1
2
3
5
3
4
5
2
2
1
4
3
8
6
6
7
7
7
7
F
F
F
2241
F
