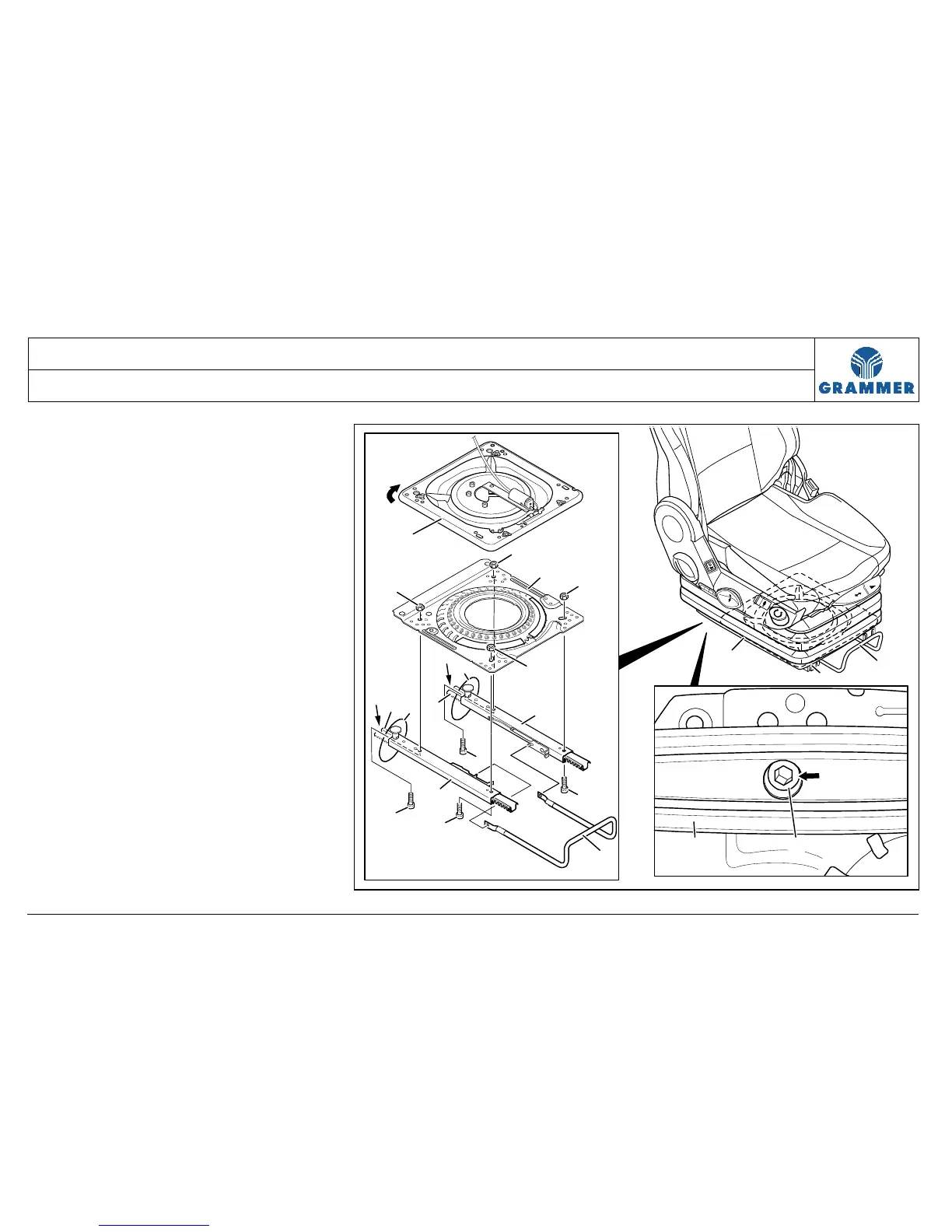

3.40.3 Seat fore/aft adjustment – removal and installation (bus seat)
Page 3 of 3
REMOVAL / INSTALLATION TABLE OF CONTENTS
6 Unscrew two micro-encapsulated cap
screws (5) at the rear and remove two
hexagon nuts (6).
Installation note:
Replace the micro-encapsulated cap
screw (5), 25 Nm.
7 Remove the seat fore/aft adjustment
(4) with the lever for fore/aft
adjustment (1) at the swivel (8).
Installation note:
Apply acid-free multi-purpose lubricant
to the notching (F) of the locking
rails (2).
8 Pull the lever for seat fore/aft
adjustment (1) out of the retainers for
the adjusting rails (3).
9 Re-install the components in the
reverse order of their removal.
