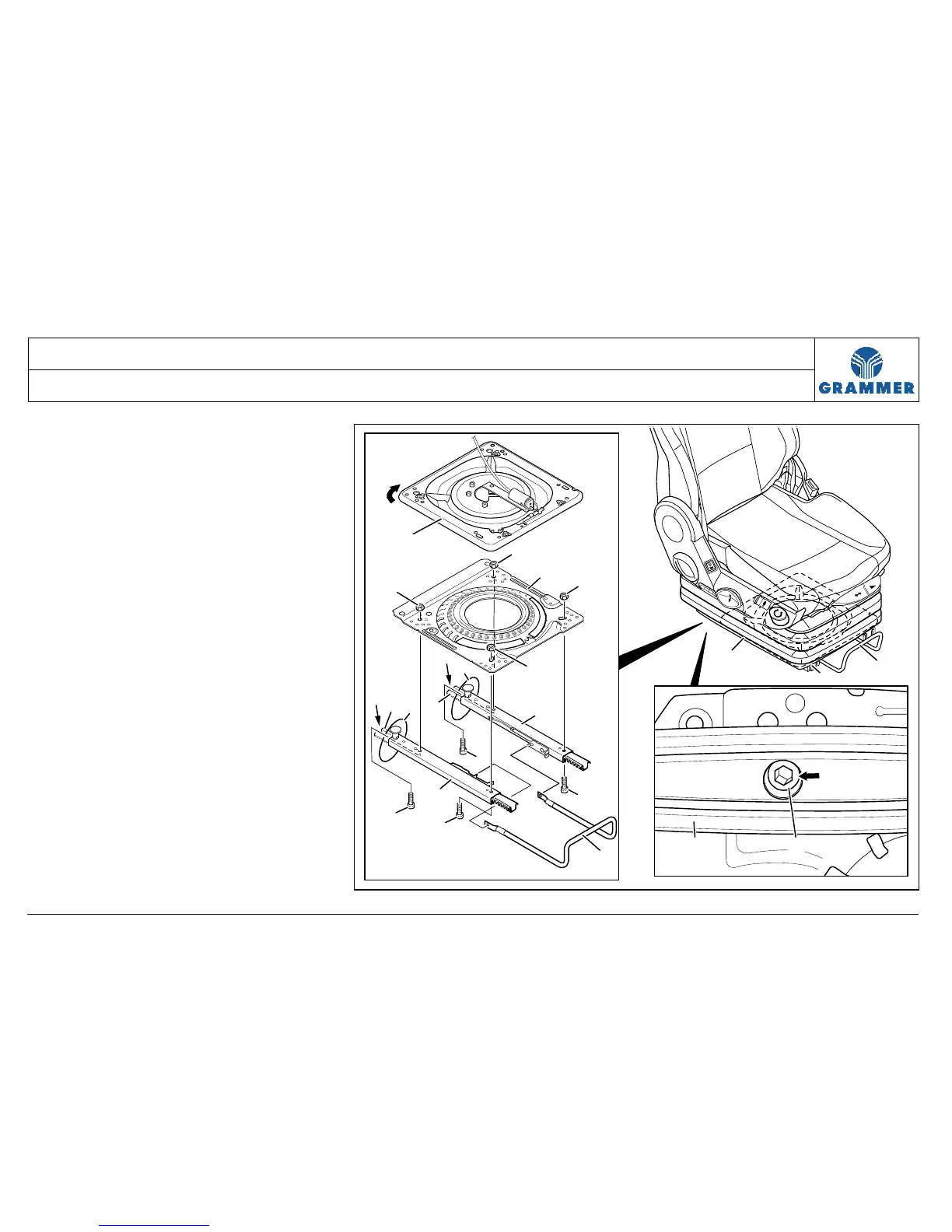

3.40.3 Seat fore/aft adjustment – removal and installation (bus seat)
Page 2 of 3
REMOVAL / INSTALLATION TABLE OF CONTENTS
Removal and installation
2 Turn the swivel (7) by approx. 45
degrees.
3 Push the seat fore/aft adjustment (4)
forwards as far as possible.
4 Unscrew two micro-encapsulated cap
screws (5) at the front and remove two
hexagon nuts (6).
Installation note:
Replace the micro-encapsulated cap
screw (5), 25 Nm.
5 Move the seat by means of the seat
fore/aft adjustment (4) so that the two
micro-encapsulated cap screws (5)
are accessible via the mounting hole
(arrow) at the bottom left and right in
the adjusting rail (5).
