3.41 Guides – removal and installation
Page 2 of 2
REMOVAL / INSTALLATION TABLE OF CONTENTS
Removal and installation

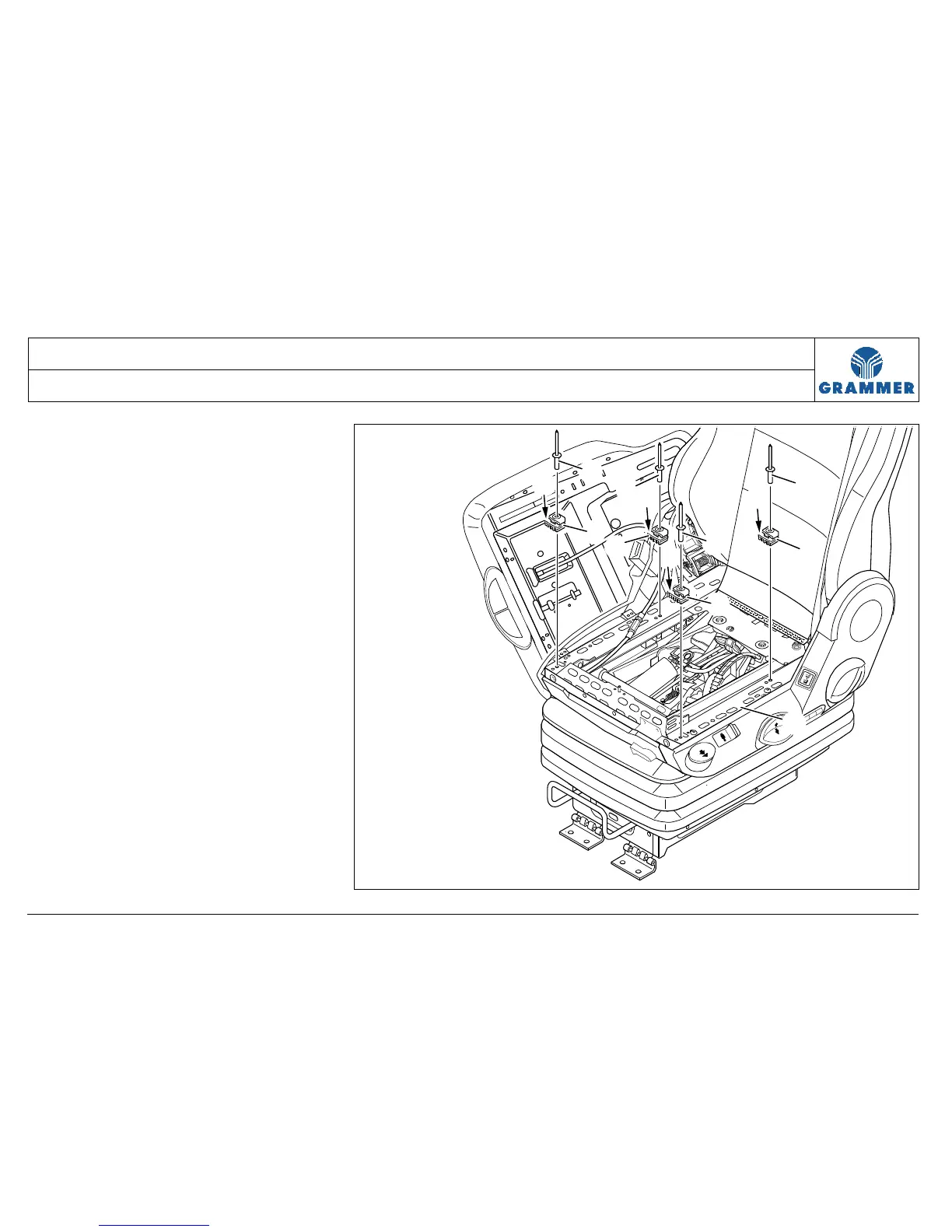

2 Bore off four rivet heads at the guides
(1) and drive out the blind rivets (2).
3 Remove four guides (1) at the seat
frame (3).
Installation note:
Apply acid-free multi-purpose lubricant
to the bearing surfaces of the seat
cushion (F) for the guides (1).
4 Re-install the components in the
reverse order of their removal.
