Grammer MSG 90.6PG - Page 348

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.42 Air hose for compressed-air quick coupling – removal and installation
(delivery option)
Page 1 of 3

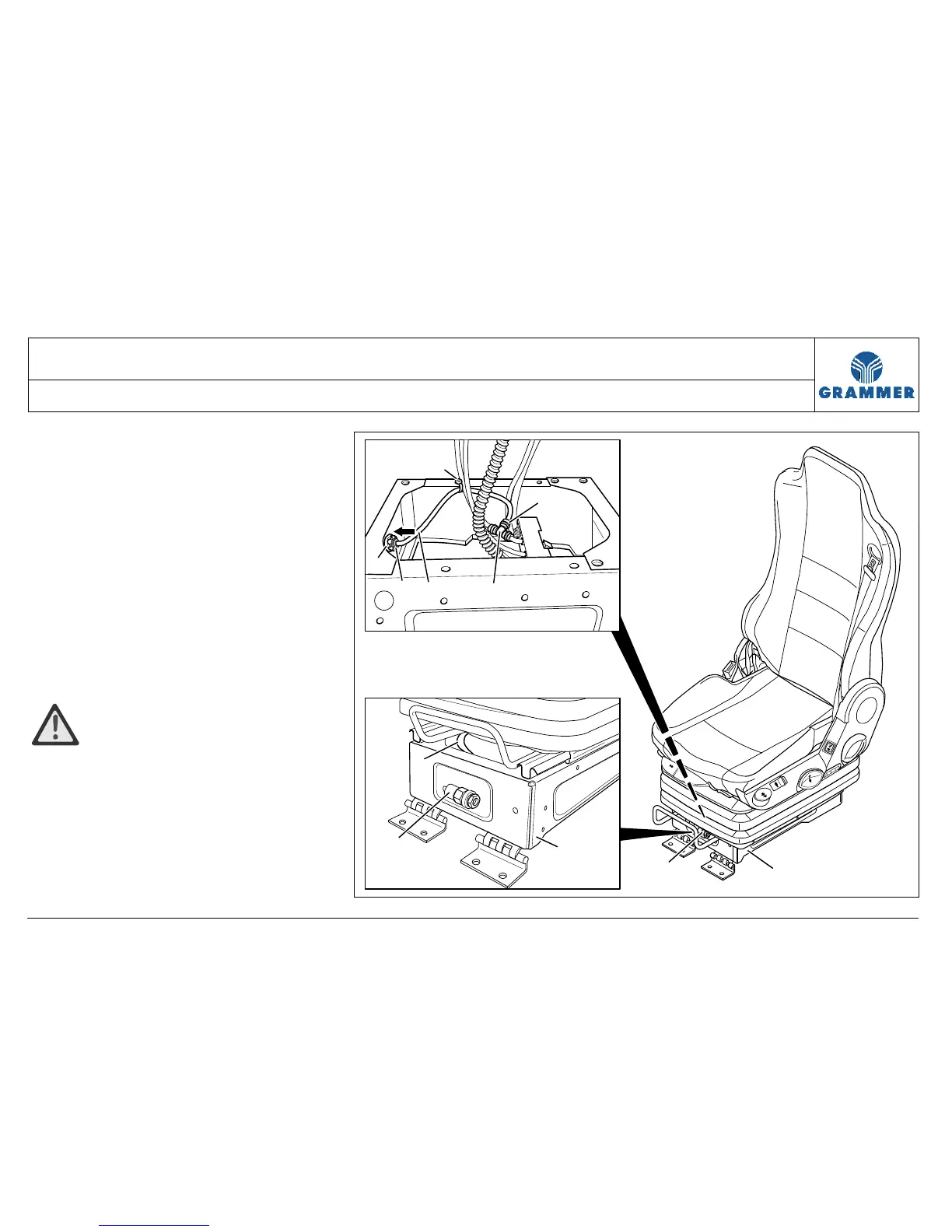

REMOVAL / INSTALLATION TABLE OF CONTENTS
(1) Air hose (for compressed-air quick
coupling)
(2) Compressed-air quick coupling
(3) Supporting structure
(4) Retaining ring
(5) Hose nozzle
(6) Hose connector (T-piece)
(7) Cable tie
WARNING Hydrostatic test!
The hydraulic test of the seat should be
performed upon installation of the new
air hose for compressed-air quick
coupling (1). To do this, apply 60 kg load
to the seat for 24 hours. The lowering
within this time must not exceed 15 mm.
2
2
3
4
3
1
6
5
7
2250
1
2
3
