Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.42 Air hose for compressed-air quick coupling – removal and installation
(delivery option)
Page 2 of 3

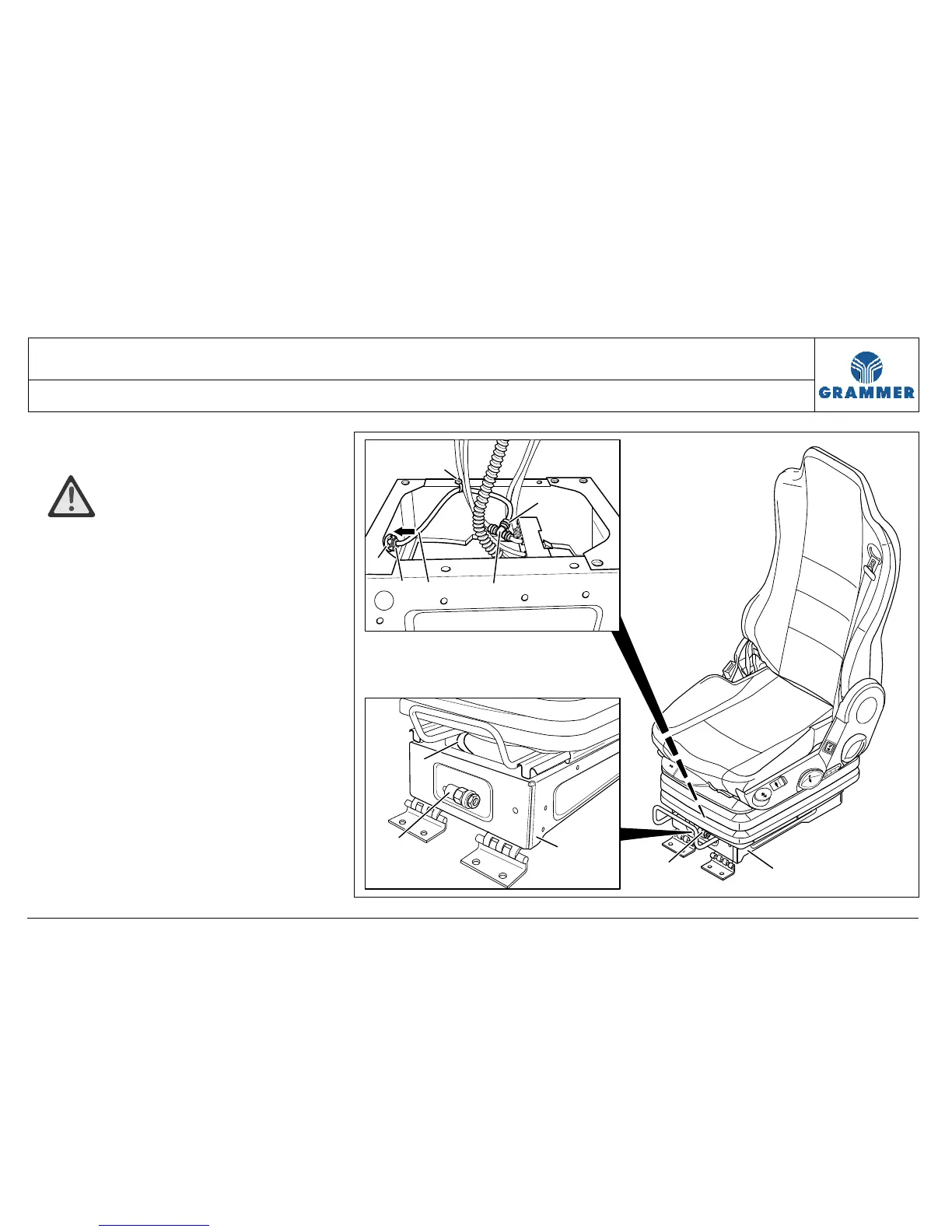

Removal and installation
1 WARNING The pressure in the
pneumatic system might cause injury!
The pneumatic system is to be vented
before removing the air hose (1) (e.g.
by means of the quick lowering).
2 Mark the point where the air hose (1)
is fastened to the supporting structure
(3) by means of cable ties (7) and
remove the cable ties (7).
3 Push the hose nozzle (5) backwards
at the air hose (1).
4 Pull off the air hose (1) at the hose
connector (6).
2
2
3
4
3
1
6
5
7
2250
1
2
3
