3.42 Air hose for compressed-air quick coupling – removal and installation
(delivery option)
Page 3 of 3

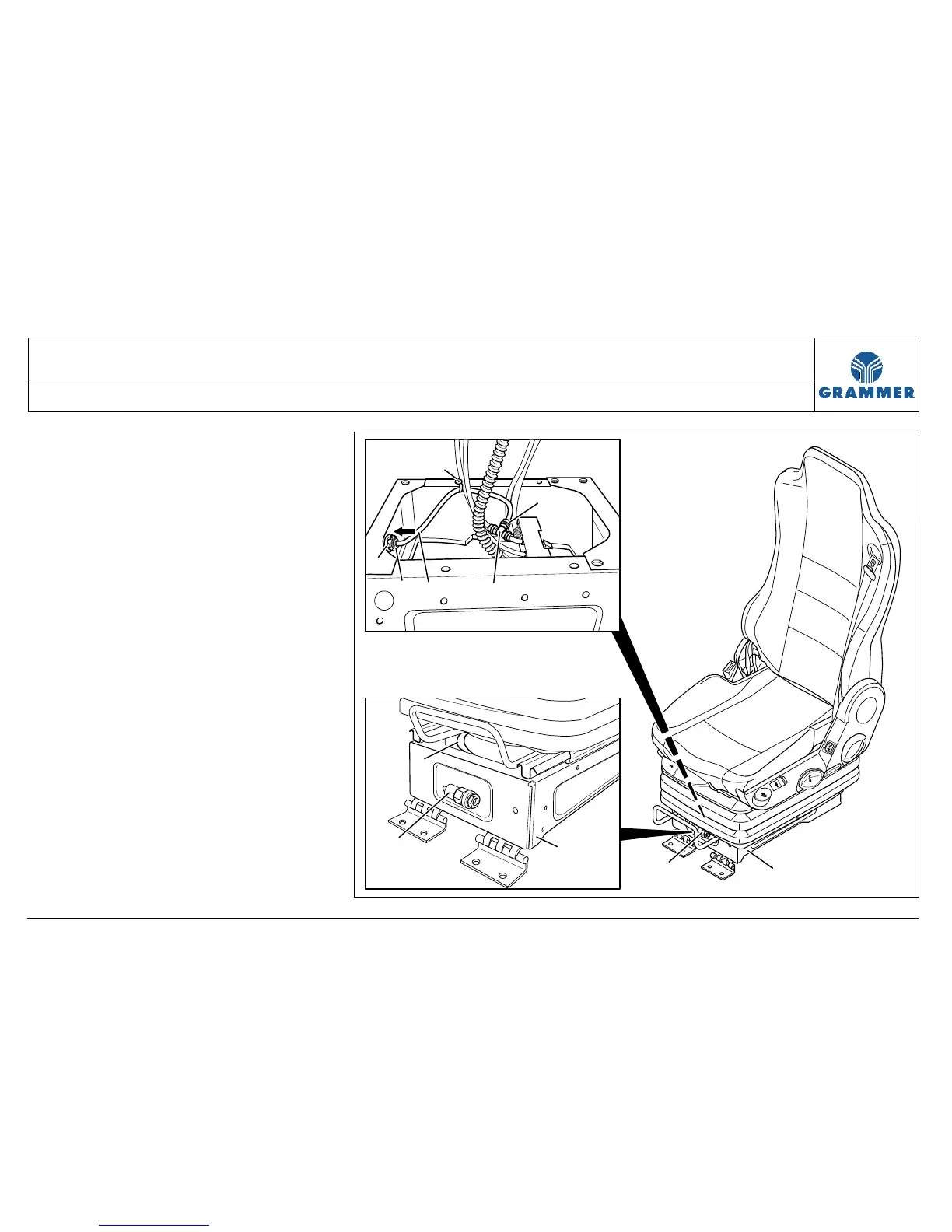

5 Pull off the hose nozzle (5) at the air
hose (1).
6 Push the retaining ring (4) of the
compressed-air quick coupling (2)
completely backwards (arrow
direction) and pull the air hose (1) out
of the compressed-air quick
coupling (2).
Installation notes:
• Insert the air hose (1) into the
compressed-air quick coupling (2) as
far as possible.
• The air hose (1) is automatically
locked with the retaining ring (4) after
it has been inserted.
7 Re-install the components in the
reverse order of their removal.
