Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c

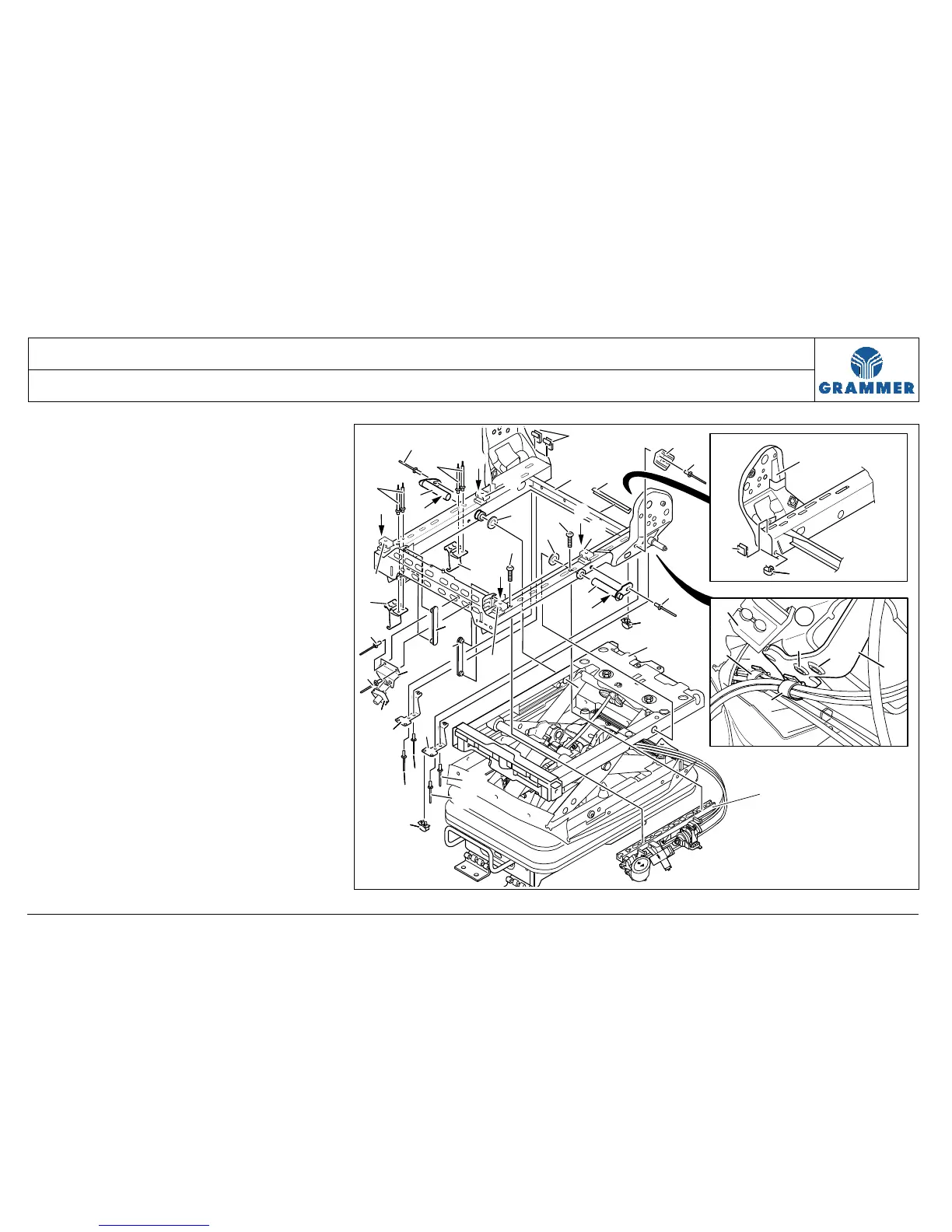

3.43 Seat frame – removal and installation
Page 3 of 8
REMOVAL / INSTALLATION TABLE OF CONTENTS
3 Seat with operator console and
armrest for electro-pneumatic
gearshift:
Remove the operator console for the
electro-pneumatic gearshift (EPS)
(see Chapter 3.25).
4 Remove the covering completely
(Chapter 3.5).
5 Remove the bellows at the upper
suspension part and at the supports
(see Chapter 3.6) and press it down.
6 Remove the Bowden pull wire and the
lever for backrest adjustment
(Chapter 3.13).
7 Remove the Bowden pull wire for seat
angle adjustment with the locking
mechanism (see Chapter 3.17).
Note:
Remove the entire locking
mechanism, do not disassemble it.
F
F
F
F
F
F
2
1
7
21
13
12
22
5
19
18
4
2
5
3
6
13
6
4
17
17
3
11
11
11
11
14
14
15
16
9
9
10
10
8
8
8
8
10
10
18
2248
9
1
1
8
20
10
10
