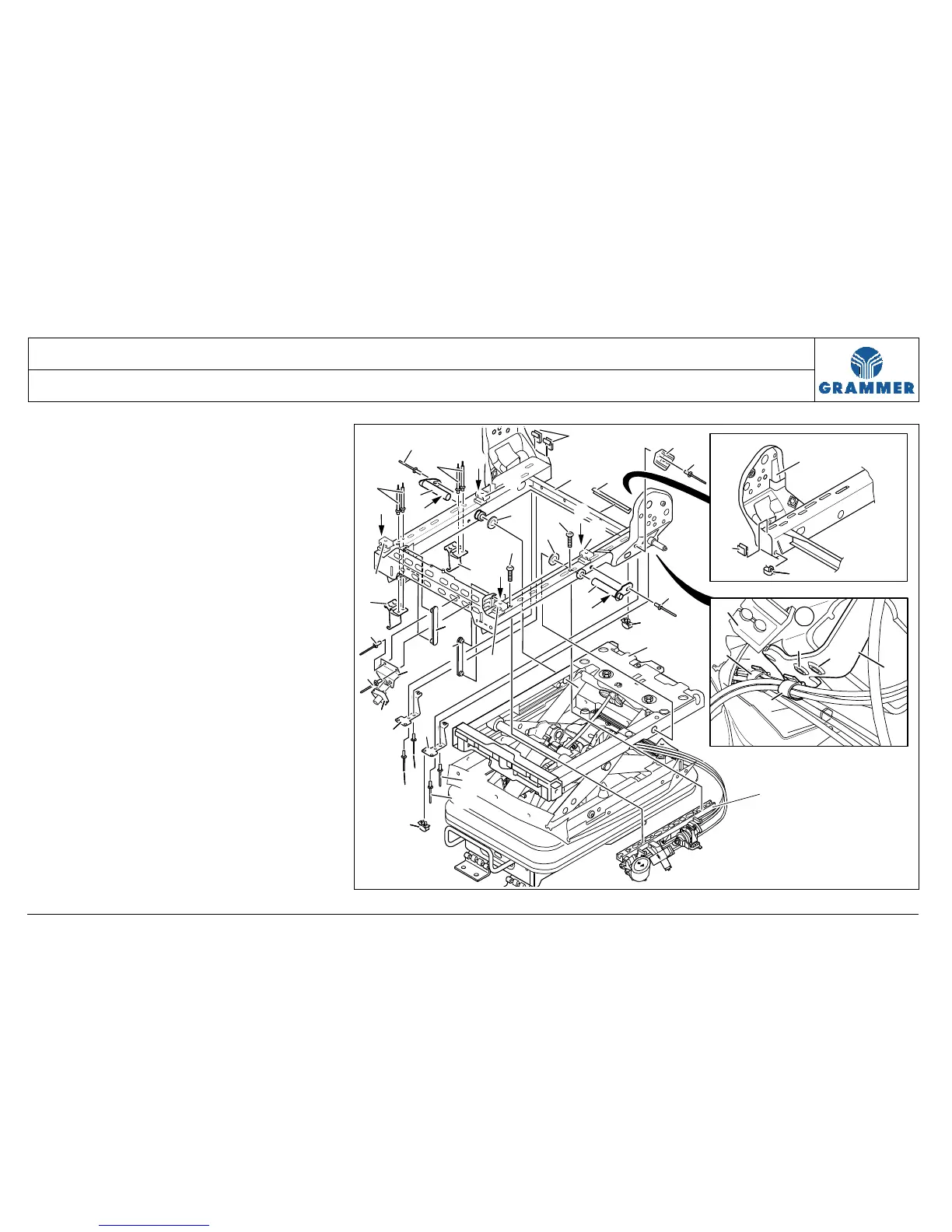

3.43 Seat frame – removal and installation
Page 4 of 8
REMOVAL / INSTALLATION TABLE OF CONTENTS
8 Remove the seat belt at the seat
frame (see Chapter 3.26).
9 Seat with lap belt:
Remove the lap belt (Chapter 3.27).
10 Remove the belt buckle with the belt
buckle cable (Chapter 3.28).
11 Remove the secondary belt
(Chapter 3.29).
12 Remove the backrest
(Chapter 3.30).
13 Remove the bearing support with
backrest locking mechanism and
hook-in function (see Chapter 3.32).
Note:
Remove the entire bearing support,
do not disassemble it.
