Grammer MSG 90.6PG - Page 355

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.43 Seat frame – removal and installation
Page 5 of 8
REMOVAL / INSTALLATION TABLE OF CONTENTS
Removal and installation
14 WARNING Risk of crushing!
Bring the seat into the highest
position and secure the swinging
structure to the front plastic rollers of
the lower suspension part by means
of appropriate spacers.

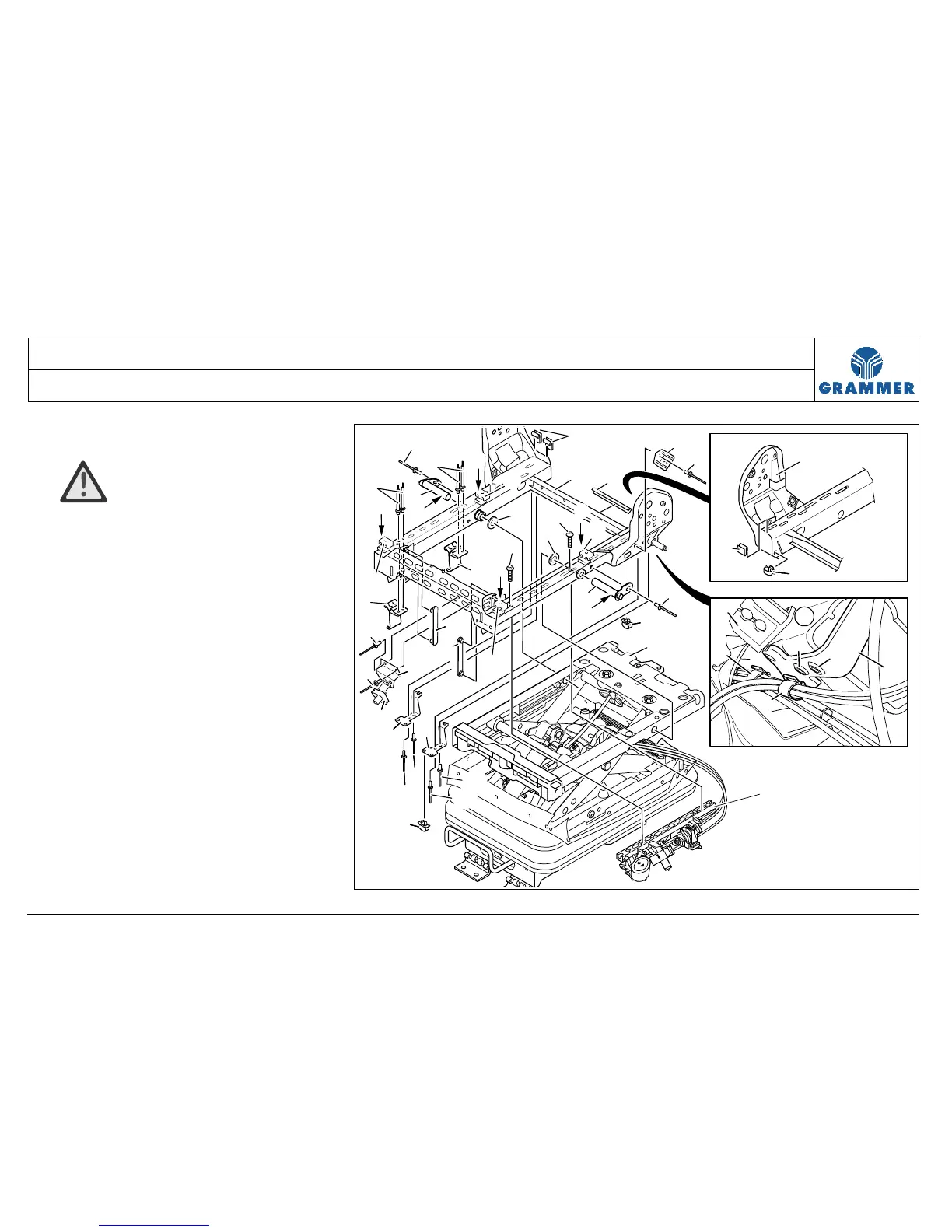

15 Unscrew two rounded head screws
(6) and lay the handle rail (22) down.
Installation note:
Rounded head screw (6), 3 Nm.
16 Pull out three clips (8) at the upper
suspension part (1) and at the
Z-section (9).
Note:
The Bowden pull wires and cables
do not need to be detached at the
clips (8).
