Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c

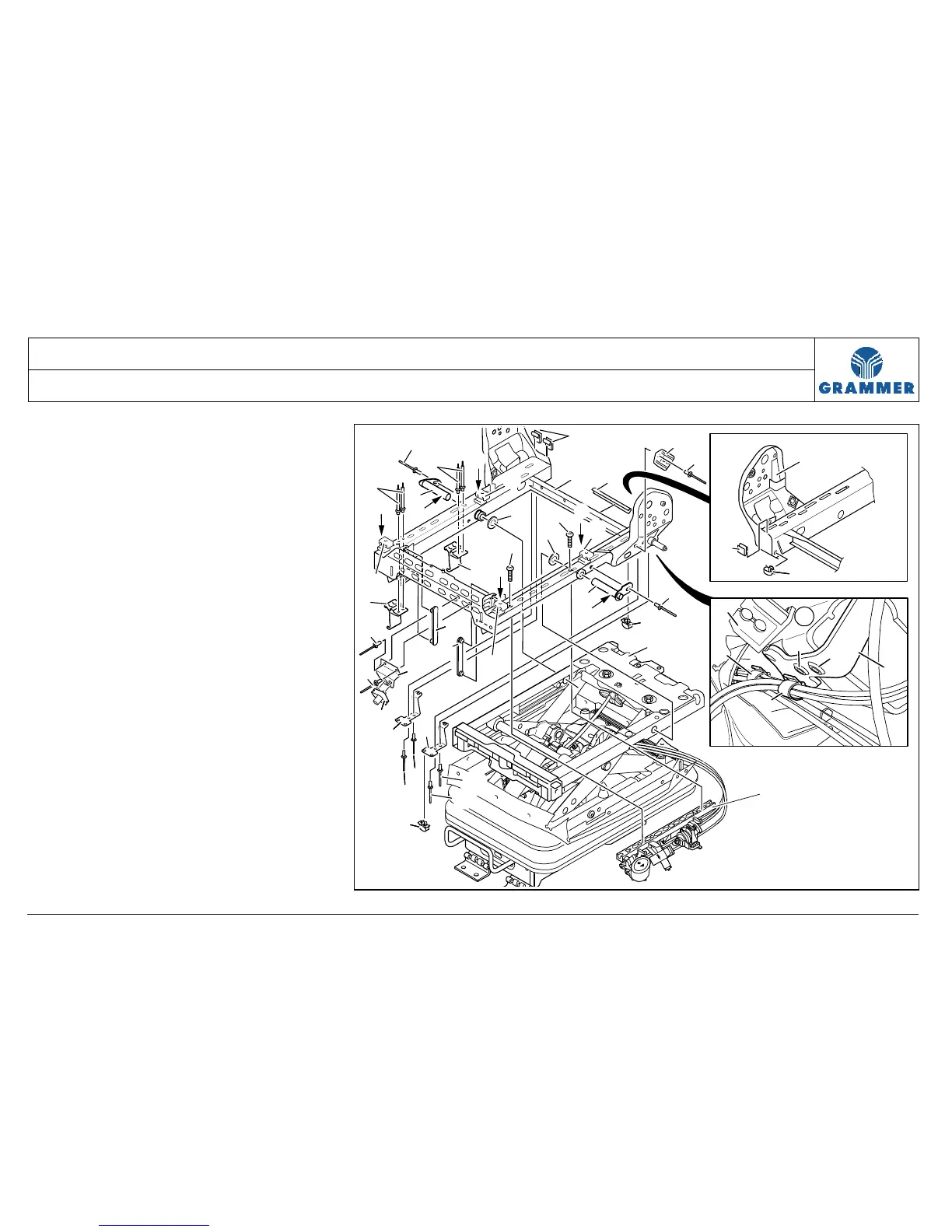

3.43 Seat frame – removal and installation
Page 6 of 8
REMOVAL / INSTALLATION TABLE OF CONTENTS
17 Bore off two rivet heads and drive
out the blind rivets (5) at the seat
frame (1).
18 Pull out two studs (2).
Installation note:
Apply acid-free multi-purpose
lubricant to the entire surface (F) of
the studs (2).
19 Remove the seat frame (1) in
upward direction.
Installation notes:
• For installation of a new seat
frame (1):
Convert assembles that do not
belong to the scope of delivery of the
new seat frame (1).
• If necessary, adjust the clearance
between the seat frame (1) and the
upper suspension part (12) by
means of clearance spacers (13).
F
F
F
F
F
F
2
1
7
21
13
12
22
5
19
18
4
2
5
3
6
13
6
4
17
17
3
11
11
11
11
14
14
15
16
9
9
10
10
8
8
8
8
10
10
18
2248
9
1
1
8
20
10
10
