Grammer MSG 90.6PG - 3.44 Seat suspension - removal and installation

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.44 Seat suspension – removal and installation
Page 1 of 8

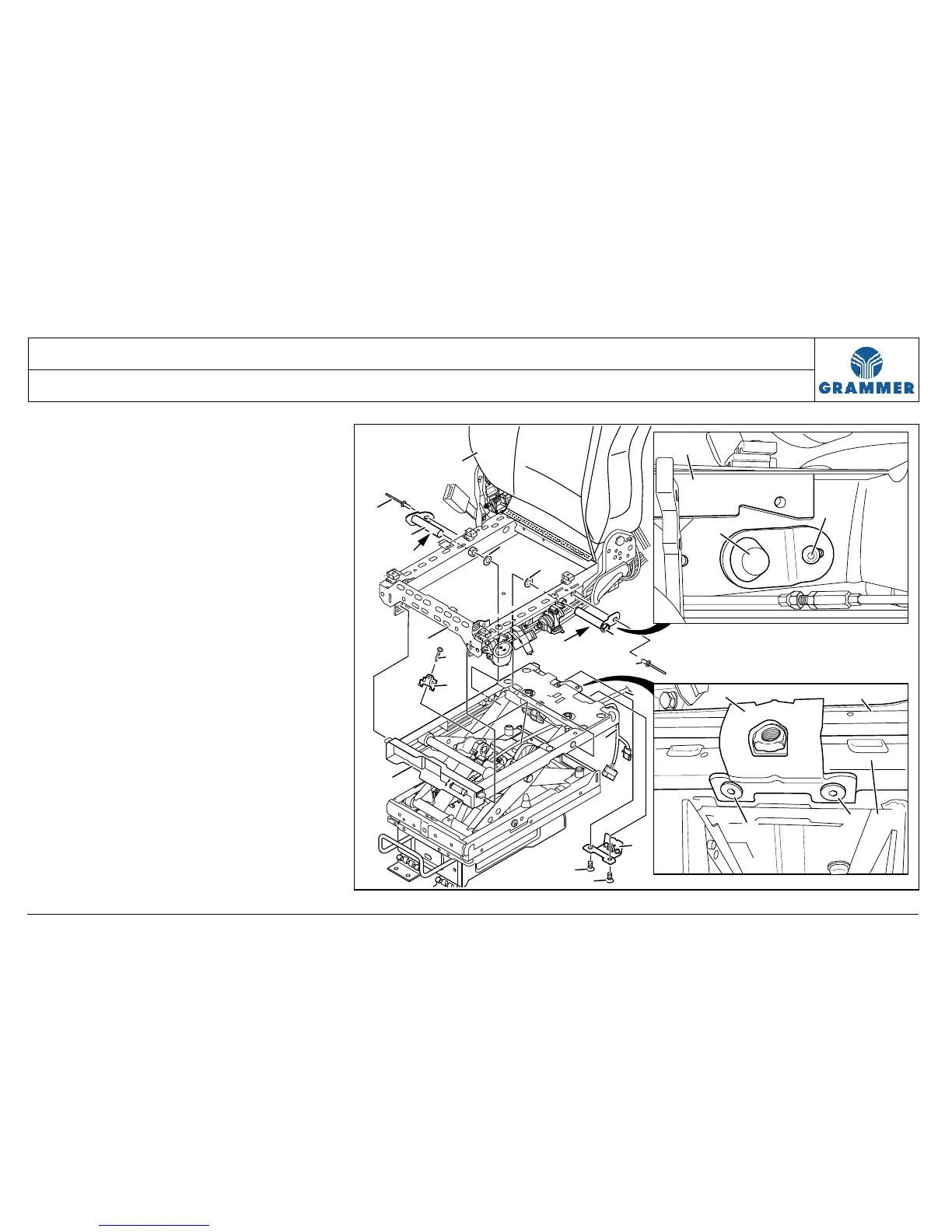

REMOVAL / INSTALLATION TABLE OF CONTENTS
(1) Seat suspension
(2) Seat frame
(3) Stud ................................. to grease
(4) Blind rivet
(5) Clearance spacer
(6) Backrest
(7) Countersunk screw
(inner race) ........................... 25 Nm
(8) Support (belt roller)
(9) Holder (Bowden pull wire)
(10) Rounded head screw
(inner race) .......................... 2.7 Nm
(11) Air hose for lumbar support and
lateral support adjustment
(12) Cable for vehicle connection
3
12
11
F
3
1
2
5
5
4
9
10
7
6
7
4
6
F
3
2
4
8
2
1
7
7
