Grammer MSG 90.6PG - Page 360

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c

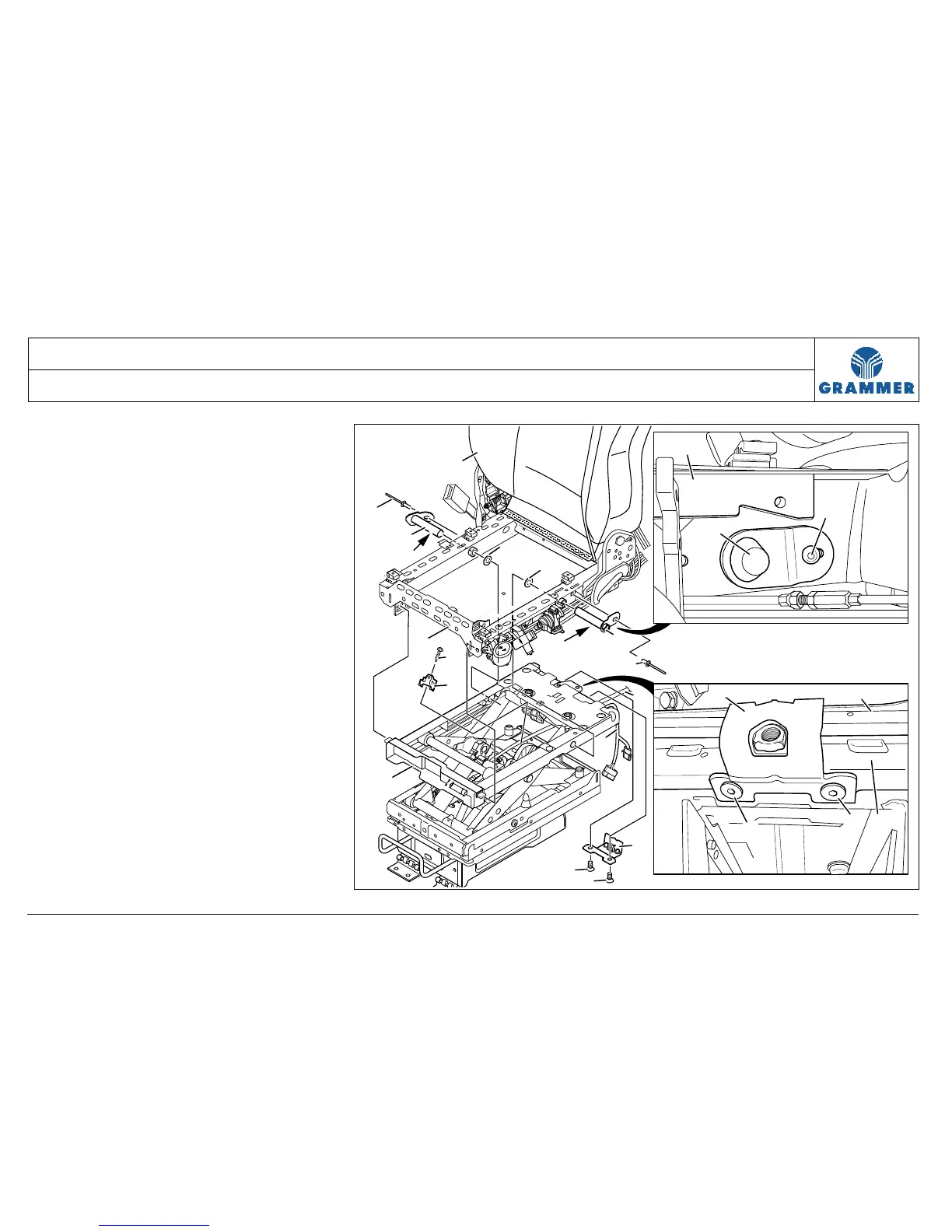

3.44 Seat suspension – removal and installation
Page 2 of 8
REMOVAL / INSTALLATION TABLE OF CONTENTS
1 Lift off the seat cushion in position for
repair (Chapter 3.1).
2 Remove the seat cushion and the
lever for seat angle and seat depth
adjustment (Chapter 3.2).
3 Remove the left covering in position
for repair (Chapter 3.4).
4 Seat with operator console and
armrest for electro-pneumatic
gearshift:
Remove the operator console for the
electro-pneumatic gearshift (EPS)
(see Chapter 3.25).
5 Remove the covering completely
(Chapter 3.5).
6 Remove the bellows (Chapter 3.6).
3
12
11
F
3
1
2
5
5
4
9
10
7
6
7
4
6
F
3
2
4
8
2
1
7
7
