Grammer MSG 90.6PG - Page 367

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.45 Swinging structure – disassembly and assembly
Page 1 of 2

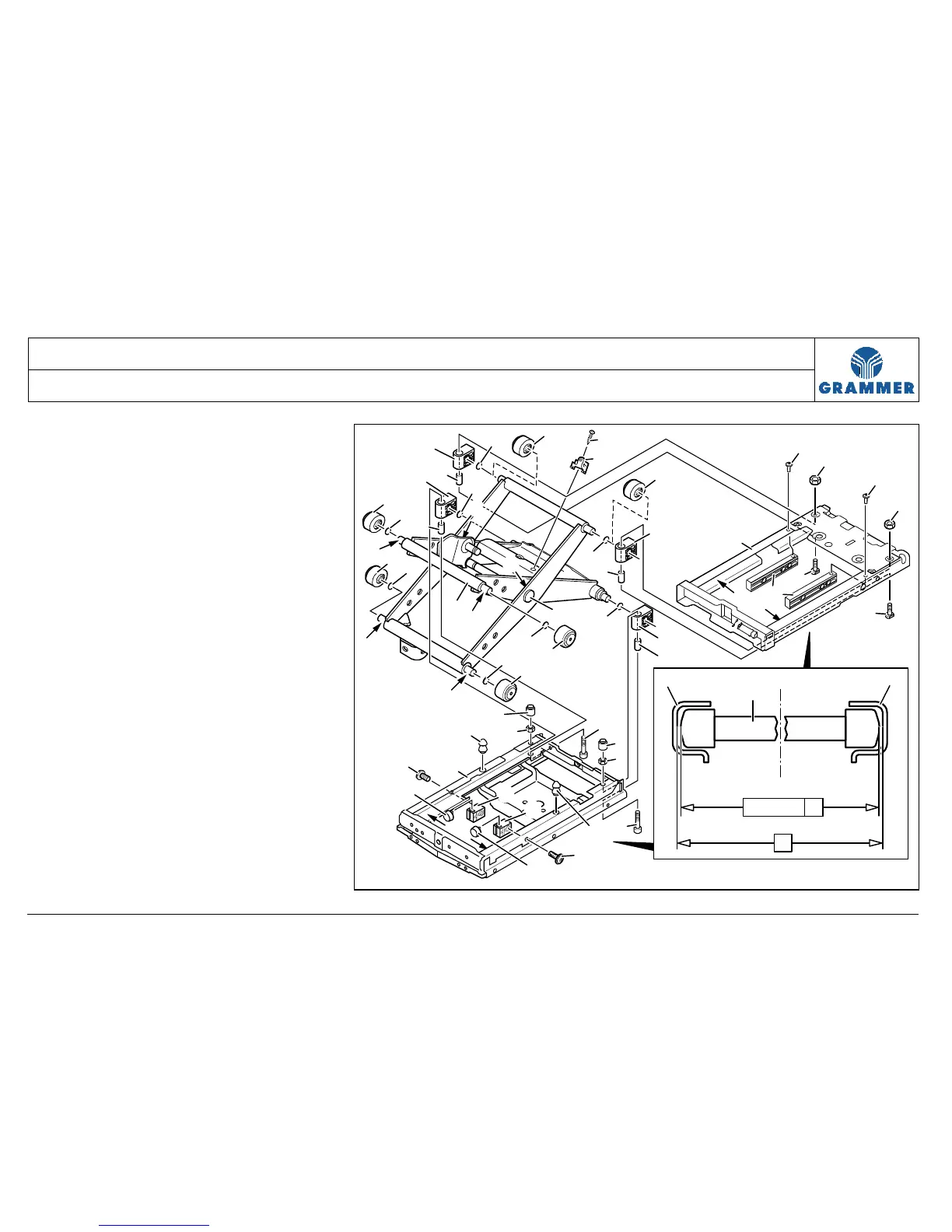

DISASSEMBLY / ASSEMBLY TABLE OF CONTENTS
(1) Lower suspension part, guiding rail
.................. face side to be greased
(2) Swinging structure
........................ axles to be greased
(3) Upper suspension part, guiding rail
..................
face side to be greased
(4) Buffer
(5) Collar screw (inner race) ......... 7 Nm
(6) Stopper
(7) Buffer
(8) Hexagon nut
(9) Buffer (spacer)
(10) Micro-encapsulated cap
screw .................. to replace, 25 Nm
(11) Clearance spacer,
thickness................. 0.2 and 0.5 mm
(12) Plastic roller
Note:
Max. clearance between the roller
and the upper suspension part or
the lower suspension part: 0.25 mm.
