Grammer MSG 90.6PG - Page 366

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.44 Seat suspension – removal and installation
Page 8 of 8
REMOVAL / INSTALLATION TABLE OF CONTENTS

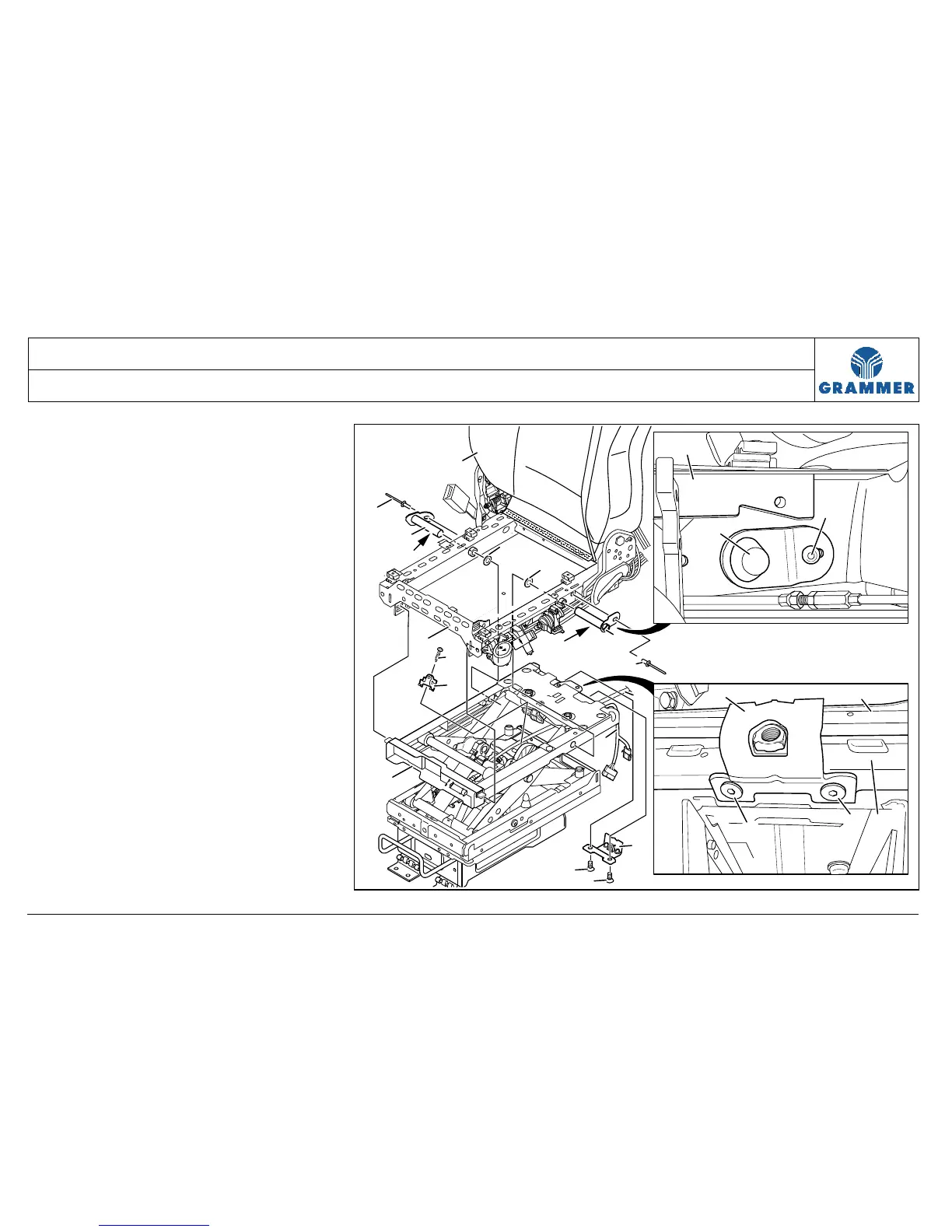

25 Lift off the seat frame (2) with the
attached backrest (6) in upward
direction.
Installation notes:
• If necessary, adjust the clearance
between the seat frame (2) and the
seat suspension (1) by means of
clearance washers (5).
• Place the seat frame (2)
horizontally in the right position onto
the seat suspension (1).
26 Remove the seat suspension (1).
Installation note:
For installation of a new seat
suspension (1):
Convert assemblies that do not
belong to the scope of delivery of the
new seat suspension (1).
27 Re-install the components in the
reverse order of their removal.
3
12
11
F
3
1
2
5
5
4
9
10
7
6
7
4
6
F
3
2
4
8
2
1
7
7
2249
