Grammer MSG 90.6PG - Page 365

Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.44 Seat suspension – removal and installation
Page 7 of 8
REMOVAL / INSTALLATION TABLE OF CONTENTS

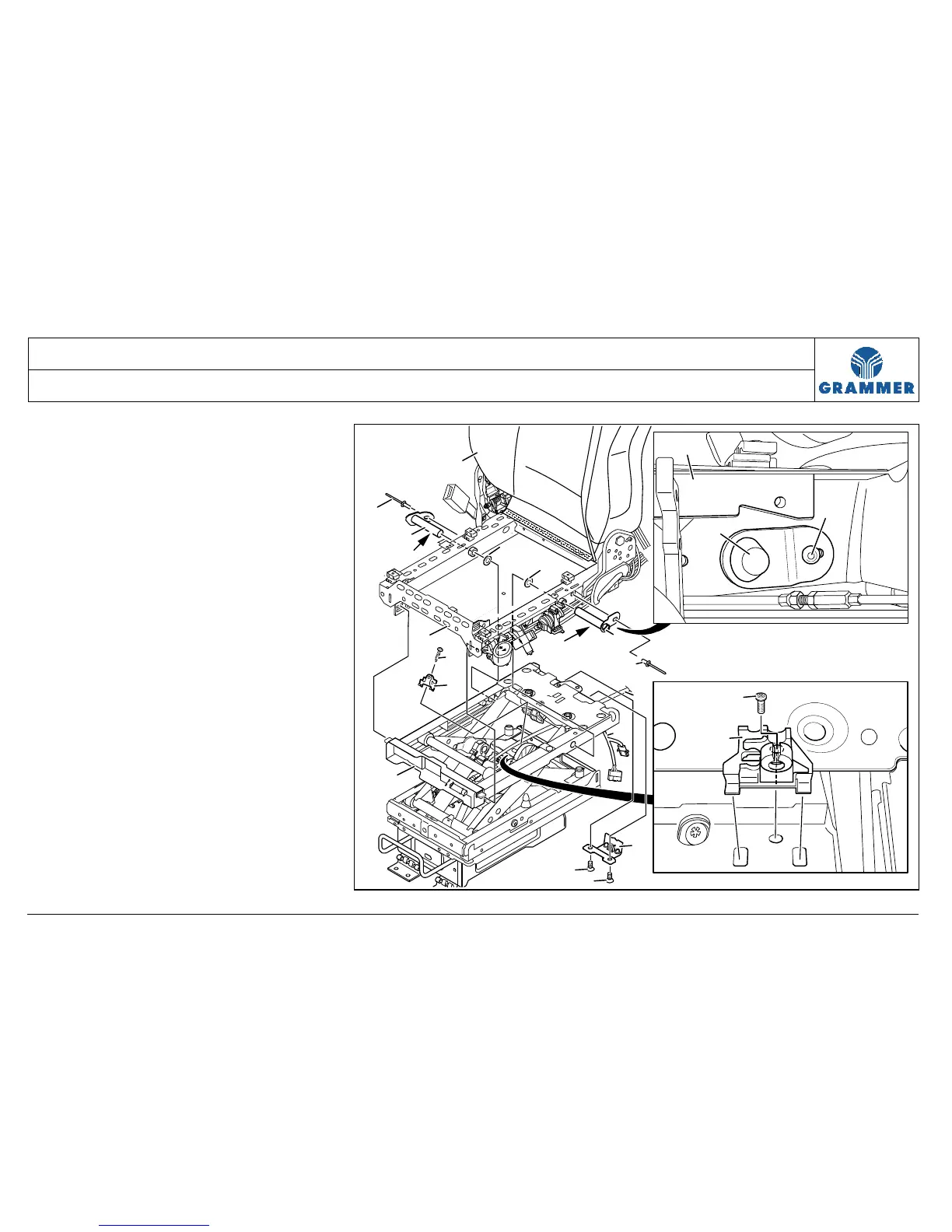

22 Unscrew the rounded head screw
(10) and remove the support (9) at
the seat suspension (1).
Installation note:
Rounded head screw (10), 2.7 Nm.
23 Bore off two rivet heads and drive
out the blind rivets (4) at the seat
frame (2).
24 Pull two studs (3) out of the seat
suspension(1) and the seat
frame (2).
Installation note:
Apply acid-free multi-purpose
lubricant to the entire surface (F) of
the stud (3).
