Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c
3.44 Seat suspension – removal and installation
Page 6 of 8
REMOVAL / INSTALLATION TABLE OF CONTENTS
17 Detach the cable for vehicle
connection and the belt tensioner
cable at the clip (see Chapter 3.20).
18 Remove the secondary belt
(Chapter 3.29).
19 Remove the supporting structure
(Chapter 3.39).
20 Remove the seat fore/aft adjustment
(Chapter 3.40).

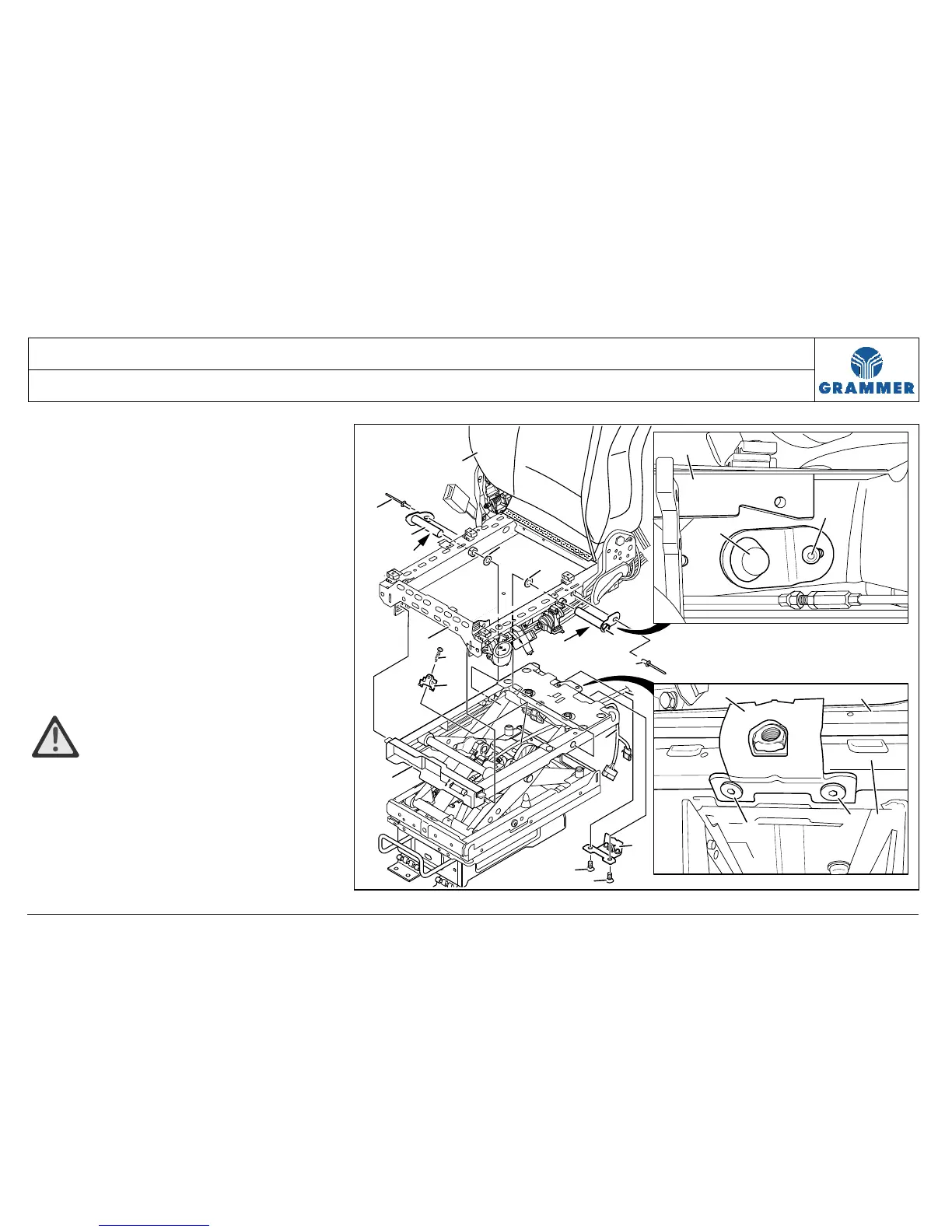

Removal and installation
WARNING Risk of crushing!
The seat frame is not locked anymore.
21
Unscrew two countersunk screws (7)
and remove the holder (8).
Installation note:
Countersunk screw (7), 25 Nm.
3
12
11
F
3
1
2
5
5
4
9
10
7
6
7
4
6
F
3
2
4
8
2
1
7
7
