Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c

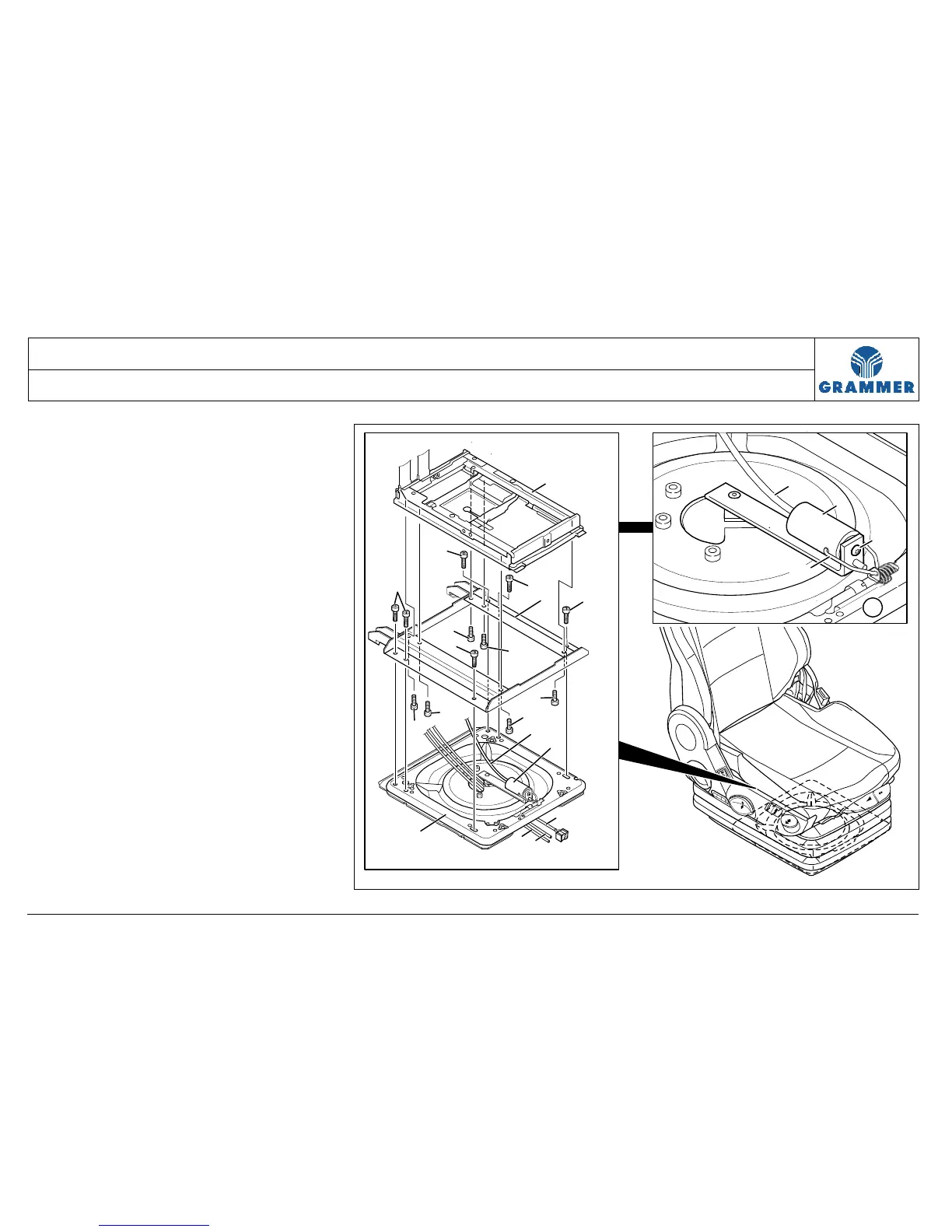

3.47.1 Swivel and linkage rod – removal and installation
Page 1 of 4
REMOVAL / INSTALLATION TABLE OF CONTENTS
(1) Swivel (complete)
(2) Micro-encapsulated cap
screw .................. to replace, 25 Nm
(3) Supporting structure for swivel
(4) Lower suspension part
(5) Micro-encapsulated cap
screw .................. to replace, 25 Nm
(6) Cylinder
(7) Air hose to the cylinder
(8) Air hose for air intake
(9) Air hose for air exhaust
(10) Cable for vehicle connection
(11) Rounded head screw
(inner race) ............. to hand-tighten
(12) Wire bracket
1
8
9
10
3
4
2
11
6
7
12
1
5
5
5
7
6
5
5
2
5
2
2
2
