Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c

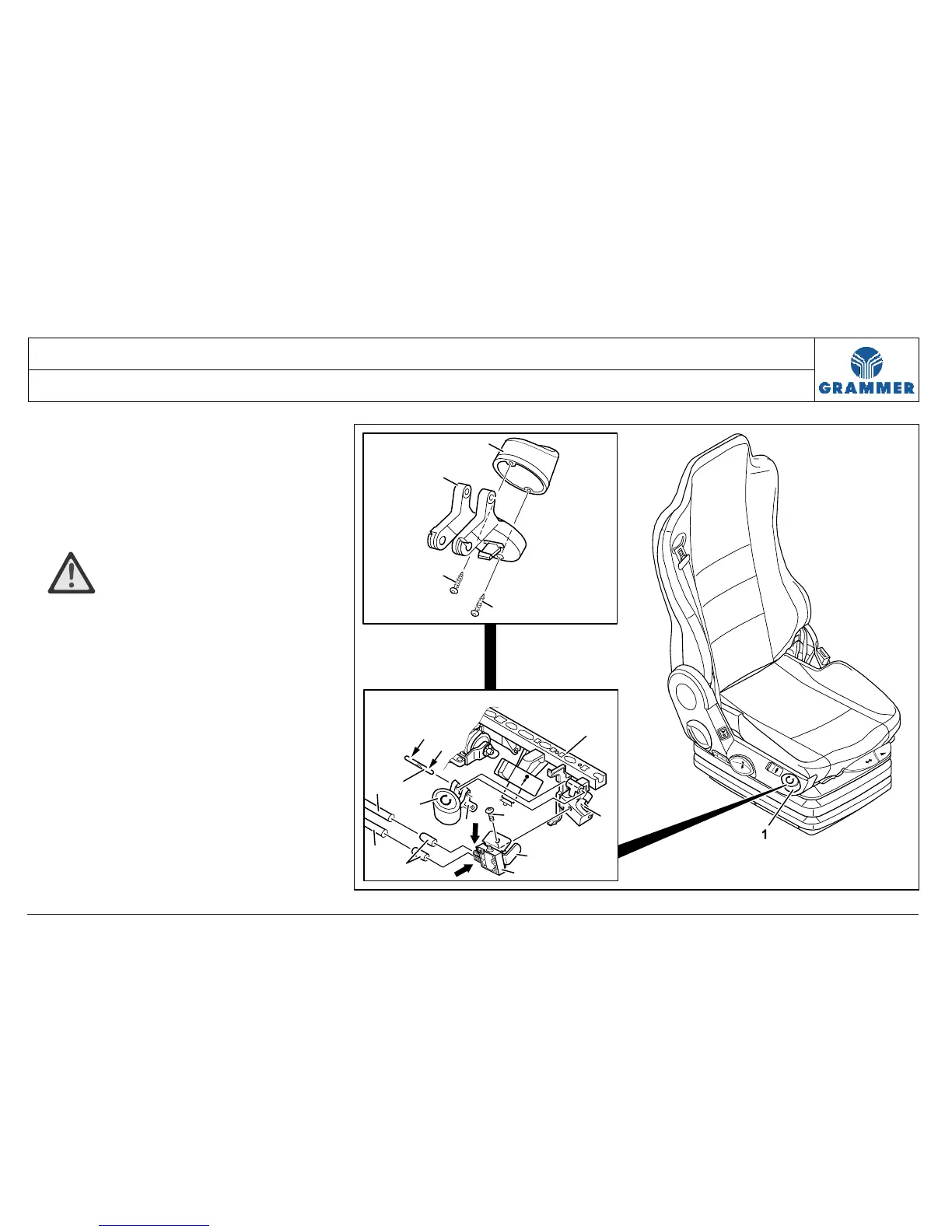

3.47.3 Button and valve for swivel – removal and installation
Page 3 of 5
REMOVAL / INSTALLATION TABLE OF CONTENTS
5 Unscrew the rounded head screw (5)
and pull out the valve for the swivel (8)
with the valve support (7) at the
holder (3).
Installation note:
Rounded head screw (5), 3 Nm.
6 WARNING The pressure in the
pneumatic system might cause injury!
The pneumatic system is to be vented
before removing the valve for the
swivel (8).
7 Pull off two hose nozzles (9) and push
them backwards over the air hoses
(10, 11).
F
F
12
12
1
6
2
3
7
6
8
5
4
1
11
10
9
