Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c

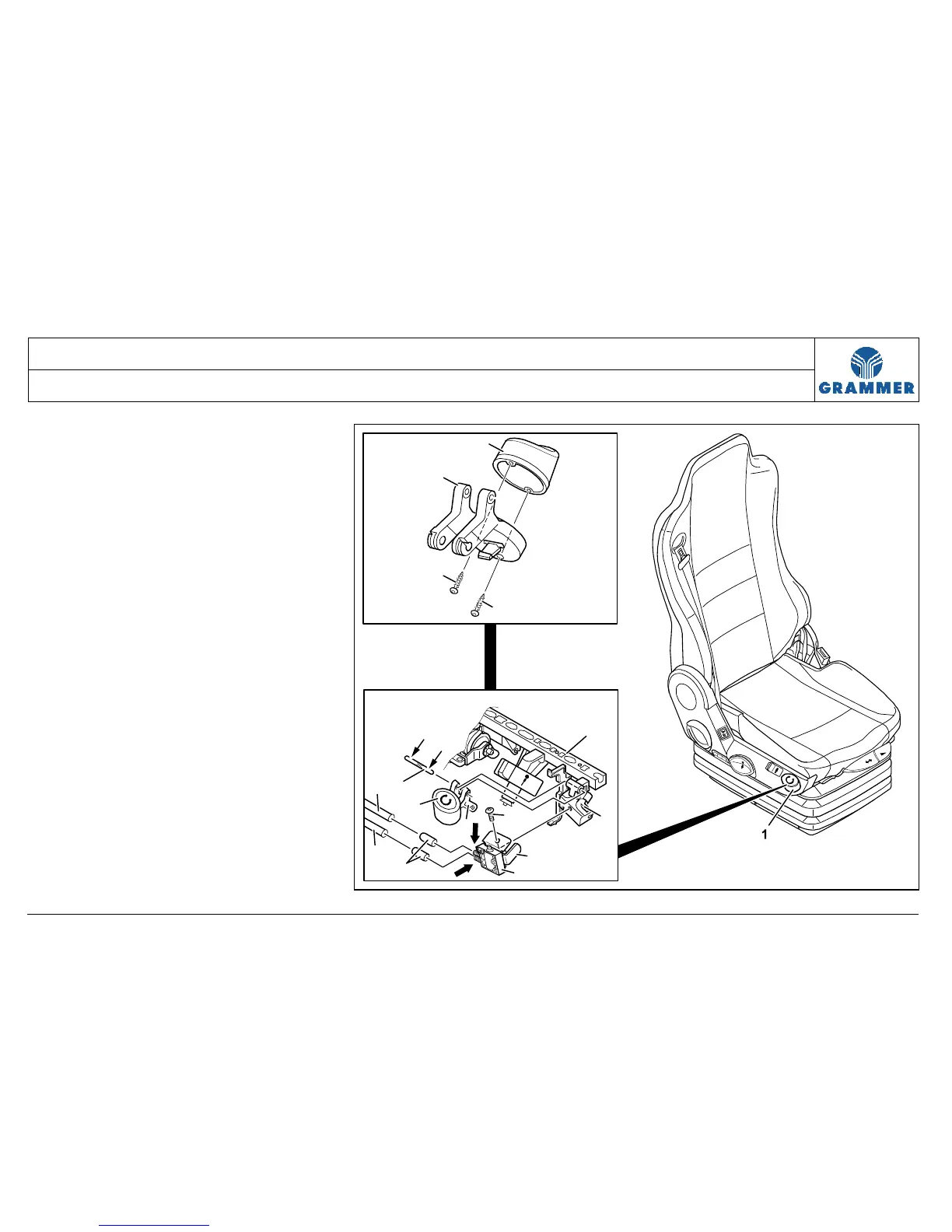

3.47.3 Button and valve for swivel – removal and installation
Page 2 of 5
REMOVAL / INSTALLATION TABLE OF CONTENTS
1 Lift off the seat cushion in position for
repair (Chapter 3.1).
2 Remove the right covering in position
for repair (Chapter 3.4).
Removal and installation
3 Drive out the grooved pin (4) at the
lever (6) and at the holder (3) in back-
ward direction and remove the lever
(6) with the button for the swivel (1).
Installation note:
Apply acid-free multi-purpose lubricant
to the entire external surface (F) of the
grooved pin (4).
4 If the button for the swivel (1) is
defective:
Unscrew two rounded head screws
(12) and remove the button for the
swivel (1).
Installation note:
Rounded head screw (12), 3 Nm.
F
F
12
12
1
6
2
3
7
6
8
5
4
1
11
10
9
2262
