Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c

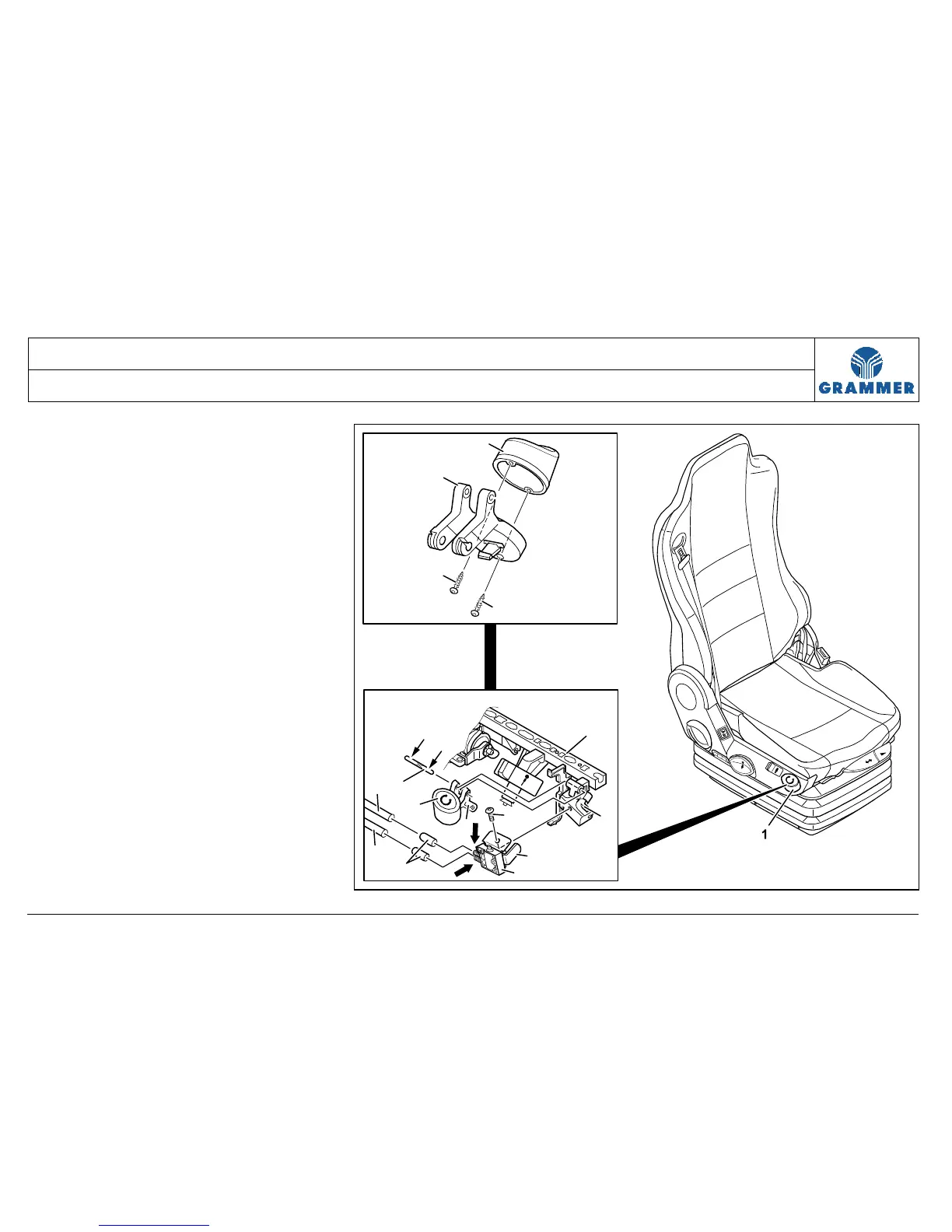

3.47.3 Button and valve for swivel – removal and installation
Page 1 of 5
REMOVAL / INSTALLATION TABLE OF CONTENTS
(1) Button for swivel
(2) Handle rail
(3) Holder (for button of swivel)
(4) Grooved pin ..................... to grease
(5) Rounded head screw
(inner race) ............................. 3 Nm
(6) Lever (of button for swivel)
(7) Valve support
(8) Valve for swivel
(9) Hose nozzle
(10) Air hose (to the cylinder)
(11) Air hose (short)
(12) Rounded head screw
(inner race) ............................. 3 Nm
F
F
12
12
1
6
2
3
7
6
8
5
4
1
11
10
9
2262
