Repair Manual MSG 90.6PG Commercial Vehicles, Omnibuses – November 2017
Material no. 1153450_c

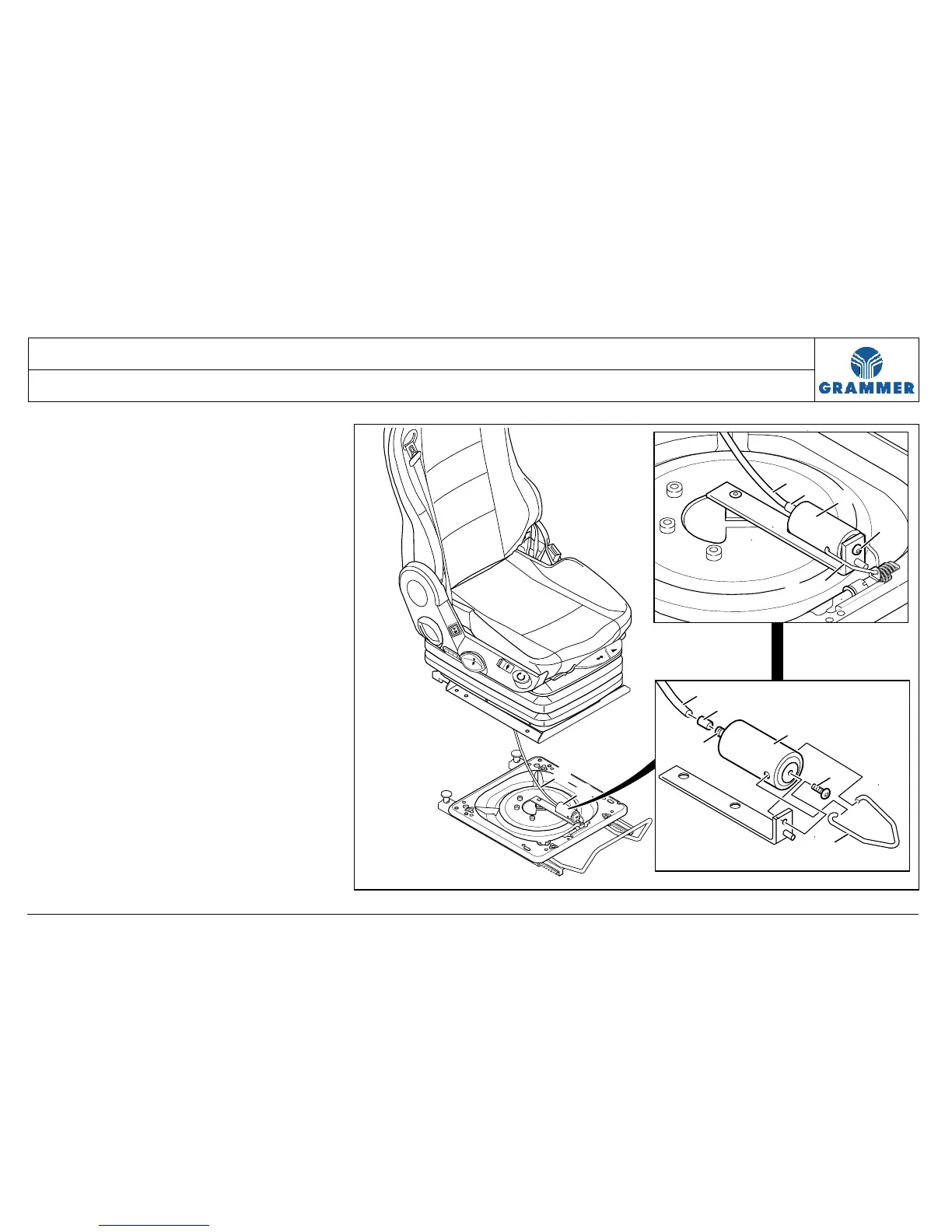

3.47.2 Cylinder for swivel – removal and installation
Page 4 of 4
REMOVAL / INSTALLATION TABLE OF CONTENTS
7 Pull off the hose nozzle (5) at the air
hose (1).
8 Unscrew the rounded head screw (3).
Installation note:
Hand-tighten the rounded head screw
(3), 2.6 Nm.
9 Detach the wire bracket (4) at the
cylinder (2) and remove the
cylinder (2).
10 Removal of the connection (6):
Unscrew the connection (6) at the
cylinder (2).
11 Re-install the components in the
reverse order of their removal.
3
1
2
4
3
4
2
6
1
1
5
1
2
5
3
